60-11-D394-1671 Acrylic thermal insulator pad for TO-220 packages, measuring 19.05mm x 12.70mm with 0.381mm thickness and 2.6W/m-K thermal conductivity.
Mfr Part #:

60-11-D394-1671

Available from 1 distributors
Mfr Name: Parker Chomerics
Parker Chomerics
Acrylic thermal insulator pad for TO-220 packages, measuring 19.05mm x 12.70mm with 0.381mm thickness and 2.6W/m-K thermal conductivity.
✓ Total Stock: 112 pcs
$ Price Range: $3.01

60-11-D394-1671 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
112 pcs
On Request
112 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

60-11-D394-1671 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backing, Carrier
Color
Material
Outline
Shape
Thermal Conductivity
Thickness
Type
Usage
View Similar Products (0)

60-11-D394-1671 Description

Short technical summary and product information.

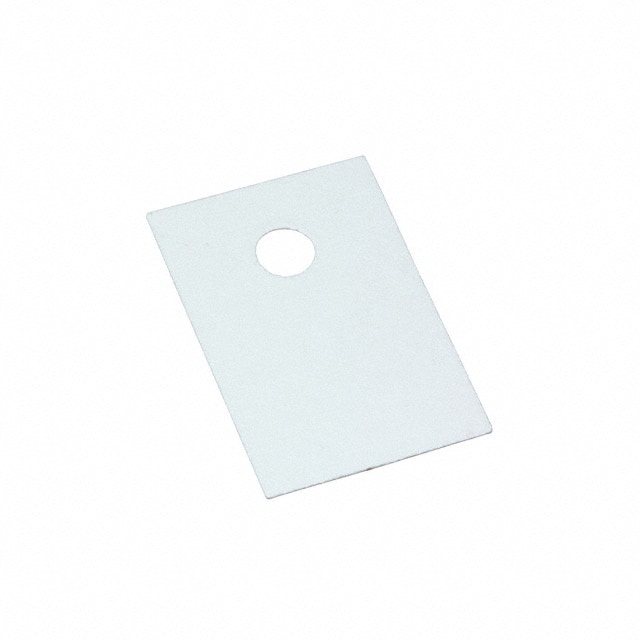

The Parker Chomerics 60-11-D394-1671 is a rectangular thermal insulator pad designed for TO-220 packages. It is made from acrylic material with a fiberglass backing, providing electrical insulation and thermal transfer between the component and heatsink.



The pad measures 19.05mm x 12.70mm with a thickness of 0.381mm (0.0150 inches). It offers a thermal conductivity of 2.6W/m-K, making it suitable for thermal management applications where electrical isolation is required.



The white color and rectangular shape allow for easy identification and placement. The fiberglass carrier provides mechanical strength and dimensional stability during handling and installation.



This thermal pad is intended for use in applications requiring heat dissipation from TO-220 packaged devices, such as power transistors, voltage regulators, and other through-hole components.

60-11-D394-1671 Quick Information

Product Type: Thermal Insulator Pad, Sheet
Canonical Name: Acrylic Thermal Insulator Pad, Sheet for TO-220
Subcategory: Pads, Sheets

60-11-D394-1671 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

60-11-D394-1671 Estimated Pricing

Qty Low High
500+ $3.01 $3.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

60-11-D394-1671 Features

  • Acrylic thermal pad with fiberglass backing.
  • 0.381mm thickness for TO-220 packages.
  • 2.6W/m-K thermal conductivity rating.
  • 19.05mm x 12.70mm rectangular outline.
  • White color for easy identification.

60-11-D394-1671 Applications

  • For thermal management of TO-220 devices.
  • Provides electrical insulation between component and heatsink.
  • Suitable for power transistors and regulators.
  • Used in power supply and amplifier circuits.

60-11-D394-1671 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the thermal conductivity of this pad?

The thermal conductivity is 2.6W/m-K.

What are the dimensions of this thermal pad?

The outline dimensions are 19.05mm x 12.70mm with a thickness of 0.381mm.

What material is this thermal pad made of?

It is made of acrylic with a fiberglass backing.

What is the shape and color of this pad?

It is rectangular and white in color.

What is this thermal pad used for?

It is used as an insulator pad for TO-220 packages.
