| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,755 pcs
|
1755 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Termination | |
| Termination Style |

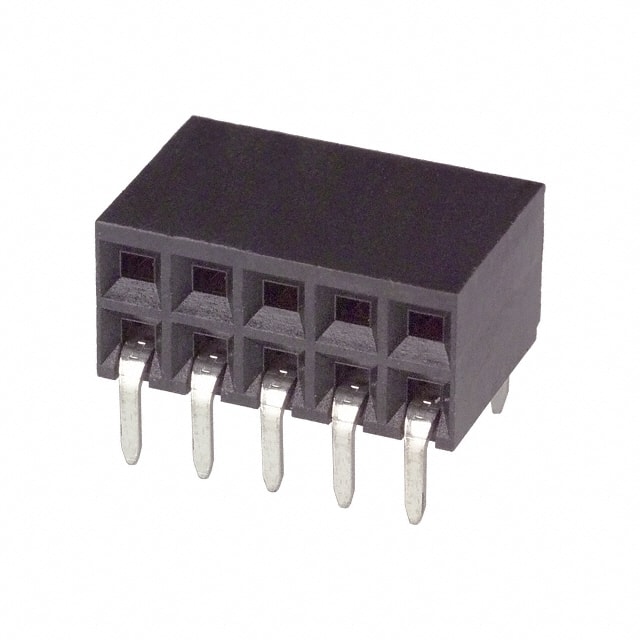

The TE Connectivity 6-535512-4 is a 10 position receptacle connector designed for PCB mounting. It features two rows of female socket contacts with a 2.54mm pitch, suitable for standard interconnect applications. The connector is rated for 2A per contact and operates over a temperature range of -55°C to 125°C.
The housing is made of black insulation material with a UL94 V-0 flammability rating, ensuring safety in various environments. The push-pull fastening type provides secure mating and easy disconnection. Contacts are finished with tin-lead plating (30µin) for reliable electrical performance.
This connector uses through hole, right angle termination, making it ideal for compact PCB layouts where space is limited. The insulation height is 6.05mm, and contact length is 2.92mm. It is commonly used in industrial control, instrumentation, and other electronic assemblies requiring a robust rectangular connector.
| Qty | Low | High |
|---|---|---|
| 1,800+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54 mm (0.100 in).
2 A per contact.
Through hole, right angle.
-55°C to 125°C.
Tin-Lead (30 µin).
Push-Pull.
