| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Dielectric Withstanding Voltage | |
| Features | |
| Height Above Board | |
| Industrial Grade | |
| LED Color | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Speed | |
| Tab Direction | |
| Termination |

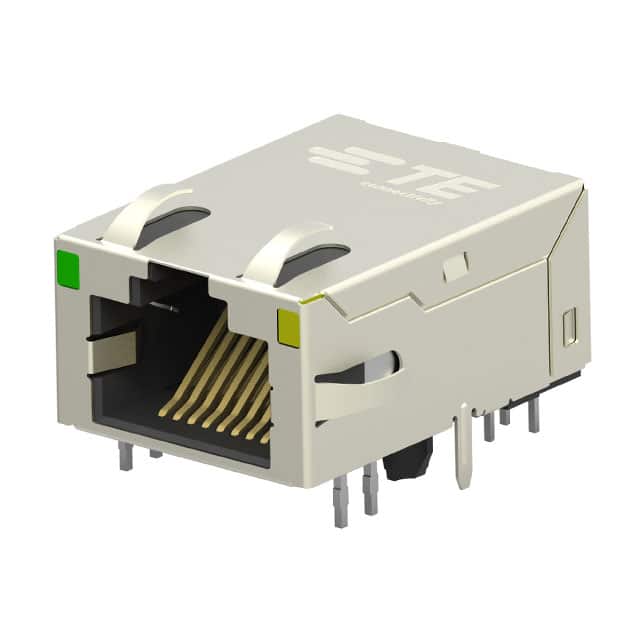

The TE Connectivity 6-2301994-1 is a single-port RJ45 jack with integrated magnetics designed for industrial Ethernet applications. It supports 10/100/1000 Base-T and AutoMDIX at speeds up to 1 Gbps. The connector uses through-hole mounting with a right-angle (90°) orientation and an upward tab direction.
Shielding is provided with an EMI finger for improved electromagnetic interference integrity. The jack includes a board lock feature for secure attachment to the PCB. Contacts are made of copper alloy with gold finish, and the housing is constructed from high-grade LCP material with a UL 94 V-0 flammability rating.
The operating temperature range is -40°C to 85°C, and the connector is rated for a minimum of 750 mating cycles. It is designed for Pin in Paste reflow soldering processes and is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.43 | $11.43 |
| 10+ | $9.72 | $9.72 |
| 25+ | $9.11 | $9.11 |
| 50+ | $8.67 | $8.67 |
| 100+ | $8.26 | $8.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45
1 port
10/100/1000 Base-T and AutoMDIX at 1 Gbps
Through hole
-40°C to 85°C
Yes, shielded with EMI finger
2250 V DC
