6-1971798-3 TE Connectivity 6-1971798-3 is a 6-position, single-row, shrouded header with male pins. It features a 2.50mm pitch and through-hole mounting with kinked pin solder termination.
Mfr Part #:

6-1971798-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 6-1971798-3 is a 6-position, single-row, shrouded header with male pins. It features a 2.50mm pitch and through-hole mounting with kinked pin solder termination.
✓ Total Stock: 139,500 pcs
$ Price Range: $0.19 - $0.52

6-1971798-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
139,500 pcs
On Request
139500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6-1971798-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

6-1971798-3 Description

Short technical summary and product information.

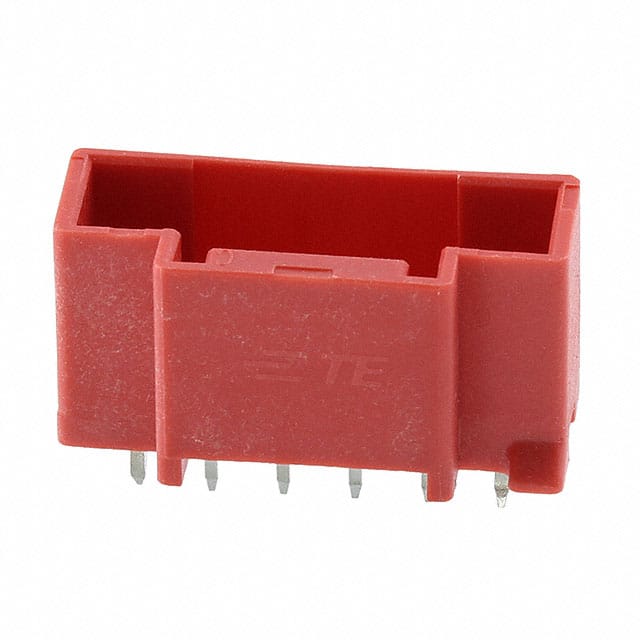

The TE Connectivity 6-1971798-3 is a 6-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 2.50mm pitch and through-hole mounting with kinked pin, solder termination for secure connections.



This connector is built with a red thermoplastic insulator rated UL94 V-0 and tin-plated copper alloy contacts. It includes a latch holder fastening type and a board guide feature for reliable mating. The operating temperature range is -30°C to 105°C, with a voltage rating of 50V.

6-1971798-3 Quick Information

Product Type: Header, Male Pins
Series: GI Connector
Canonical Name: TE Connectivity 6-1971798-3 Header, Male Pins, 6 Position, 2.5mm Pitch, Through Hole
Subcategory: Shrouded Header

6-1971798-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6-1971798-3 Estimated Pricing

Qty Low High
1+ $0.52 $0.52
10+ $0.44 $0.44
25+ $0.39 $0.39
100+ $0.35 $0.35
250+ $0.31 $0.31
750+ $0.25 $0.25
3,000+ $0.24 $0.24
5,250+ $0.23 $0.23
10,500+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

6-1971798-3 Features

  • 6-position single-row shrouded header.
  • 2.50mm pitch for compact designs.
  • Through-hole kinked pin solder termination.
  • Rated for 50V DC operation.
  • Operating temperature range -30°C to 105°C.

6-1971798-3 Applications

  • Board-to-cable/wire interconnection applications.
  • Used in industrial control and automation systems.
  • Suitable for consumer electronics and appliances.

6-1971798-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TE Connectivity 6-1971798-3 header?

The pitch is 2.50mm (0.098 inches).

How many positions does this header have?

This header has 6 positions in a single row.

What is the voltage rating of this connector?

The voltage rating is 50V.

What is the mounting type for this header?

It is a through-hole mounting type.

What is the operating temperature range?

The operating temperature range is -30°C to 105°C.

What is the contact finish on this header?

The contact finish is tin.

Is this header shrouded?

Yes, it is a shrouded header with a 4-wall design.
