| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Wire size |

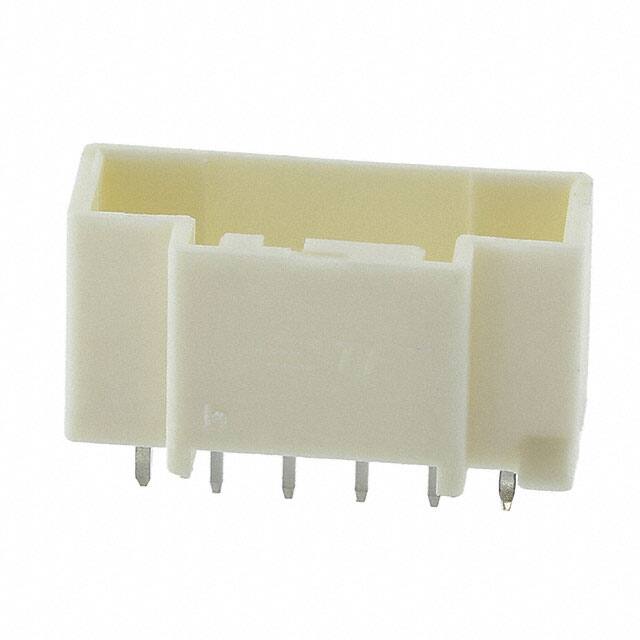

The TE Connectivity 6-1971798-1 is a 6-position, single-row, through-hole header from the GRACE INERTIA connector family. It features a 2.5mm pitch and is designed for board-to-cable/wire applications. The header is shrouded with 4 walls and includes a latch holder for secure mating. It has a kinked pin termination for solder connection. The insulation is natural thermoplastic with UL94 V-0 flammability rating. Contacts are copper alloy with tin finish. The header is rated for 3A maximum current and 50V AC/DC. Operating temperature range is -30°C to 105°C. It accepts wire sizes #22 to #28 AWG. The inertia locking mechanism helps prevent half-mating and ensures reliable connection. The header also includes a board guide feature. This component is suitable for home appliances, vending machines, and other large electrical products requiring wire-to-board signal connections.
| Qty | Low | High |
|---|---|---|
| 22,500+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.5mm.
3.0A maximum.
50V maximum.
Through hole.
-30°C to 105°C.
#22 to #28 AWG.
