| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

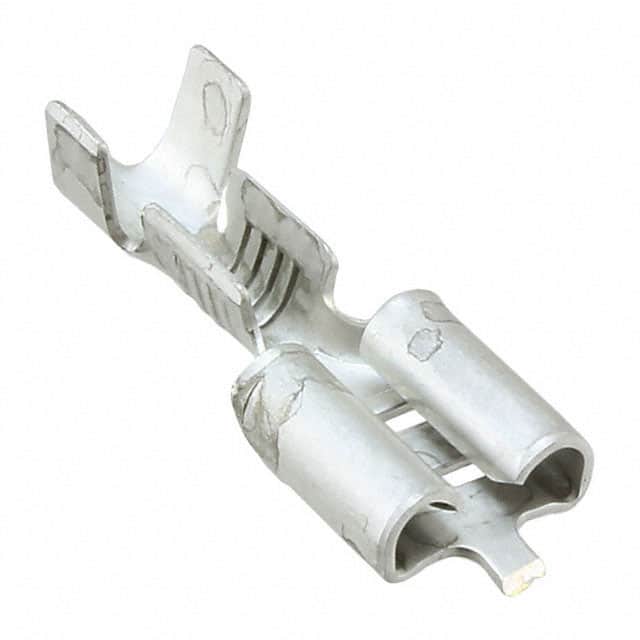

The TE Connectivity 6-160465-0 is a non-insulated female quick connect receptacle designed for 15.5-18.5 AWG wire. It features a 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, and 0.303" (7.70mm) tab length. The contact is made of brass with a tin finish, ensuring good conductivity and corrosion resistance. Termination is via crimp, and the connector is designed for free hanging (in-line) mounting. The overall length is 19.00mm (0.748"). The non-insulated design allows for compact connections where insulation is not required. Typical applications include automotive, appliance, and general wiring harnesses. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.20 | $0.20 |
| 25+ | $0.19 | $0.19 |
| 50+ | $0.18 | $0.18 |
| 100+ | $0.17 | $0.17 |
| 250+ | $0.16 | $0.16 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.15 | $0.15 |
| 2,500+ | $0.14 | $0.14 |
| 6,000+ | $0.13 | $0.13 |
| 12,000+ | $0.12 | $0.12 |
| 18,000+ | $0.12 | $0.12 |
| 30,000+ | $0.12 | $0.12 |
| 42,000+ | $0.11 | $0.11 |
| 60,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line).
15.5-18.5 AWG.
0.250" (6.35mm).
Crimp.
Brass with tin finish.
Female.
