| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,000 pcs
|
35000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30,500 pcs
|
30500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

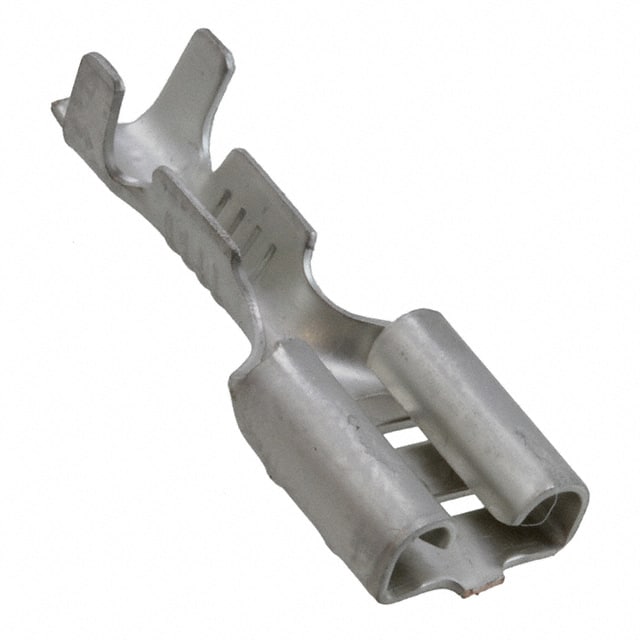

The TE Connectivity 6-160432-0 is a non-insulated female quick disconnect terminal designed for reliable wire-to-tab connections. It accepts 15.5-20 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) tab thickness and 0.303" (7.70mm) tab length.
The contact is made of phosphor bronze with a tin finish, providing good conductivity and corrosion resistance. The terminal uses a crimp termination method and is designed for free hanging (in-line) mounting. Overall length is 19.00mm (0.748").
This terminal is suitable for a variety of power and signal interconnection applications where a quick connect/disconnect interface is required. The non-insulated design allows for use in applications where additional insulation or heat shrink tubing may be applied by the user.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
| 10+ | $0.18 | $0.18 |
| 25+ | $0.17 | $0.17 |
| 50+ | $0.16 | $0.16 |
| 100+ | $0.16 | $0.16 |
| 250+ | $0.15 | $0.15 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.13 | $0.13 |
| 2,500+ | $0.12 | $0.12 |
| 7,000+ | $0.12 | $0.12 |
| 14,000+ | $0.11 | $0.11 |
| 21,000+ | $0.11 | $0.11 |
| 35,000+ | $0.10 | $0.10 |
| 49,000+ | $0.10 | $0.10 |
| 70,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
It accepts 15.5-20 AWG wire.
The contact is phosphor bronze with a tin finish.
No, it is non-insulated.
It uses crimp termination.
Free hanging (in-line) mounting.
