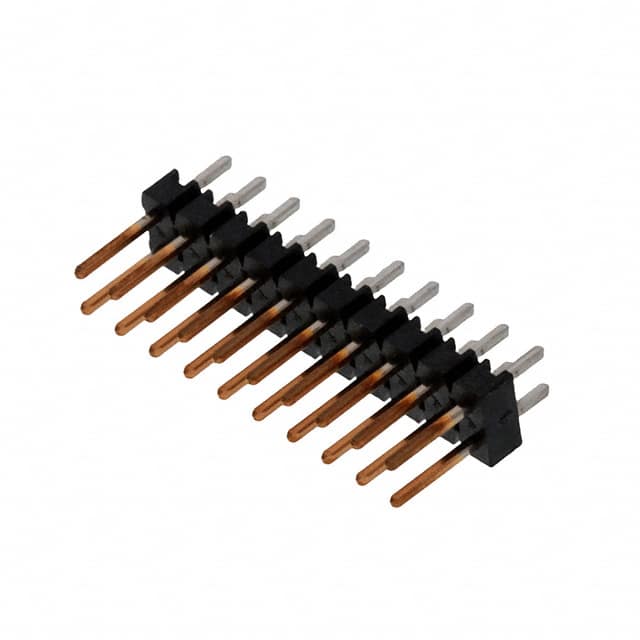

The TE Connectivity 6-146256-0 is a 20-position, 2-row unshrouded header designed for board-to-board or cable connections. It features a 2.54mm pitch and row spacing, making it suitable for standard 0.100-inch grid applications.
The header uses square male pins with a tin contact finish and a contact length of 5.84mm. The overall contact length is 11.18mm, and the insulation height is 2.29mm. The insulator is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This through-hole component is terminated by soldering and is rated for 3A current. It operates over a temperature range of -65°C to 105°C, making it suitable for a variety of environments.
The unshrouded, push-pull design allows for easy mating and unmating, and the breakaway style enables customization of the number of positions if needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.80 | $4.80 |
| 10+ | $4.09 | $4.09 |
| 100+ | $3.31 | $3.31 |
| 200+ | $3.30 | $3.30 |
| 600+ | $3.05 | $3.05 |
| 1,000+ | $2.94 | $2.94 |
| 2,600+ | $2.80 | $2.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 20 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100 inches), with the same row spacing.
The current rating is 3A.
This connector is through-hole mounted with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 15.0µin (0.38µm).
This header is unshrouded.
