| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Country of Origin | |
| Height | |
| Length | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operating Temperature | |
| Power Consumption | |
| Relay Type | |
| Switching Voltage | |
| Terminal Type | |
| Termination Style | |
| Width |

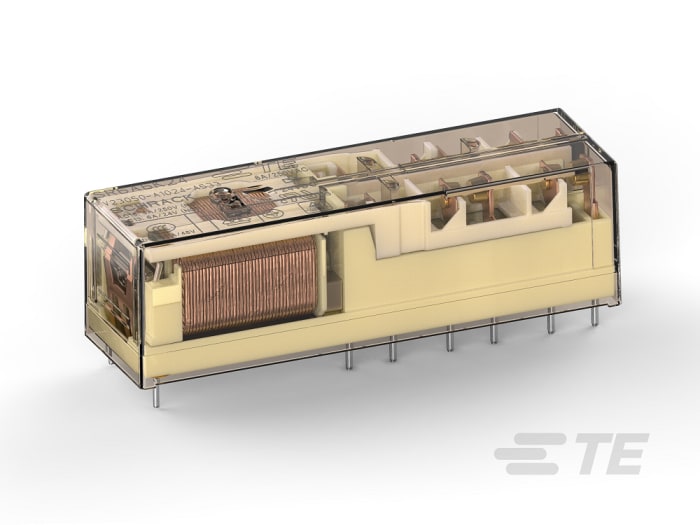

This TE Connectivity SR6 series force guided relay, part number 6-1415537-4, is suitable for general purpose applications. It operates with a 21VDC coil voltage and offers a contact configuration of 3 Normally Open (NO) and 3 Normally Closed (NC) poles. The relay is rated for a contact current of 8A and a switching voltage of up to 400VAC.
Designed for through-hole mounting, this relay features PC pin termination. Its operating temperature range is from -25°C to 70°C. The power consumption is 0.8W. The contact material is a combination of Silver Tin Oxide (AgSnO) and Gold (Au).
Key electrical specifications include a must-operate voltage of 16 VDC and a must-release voltage of 2.1 VDC. The coil type is non-latching, with a coil current of 38.1 mA. The dimensions are 16.5mm in width and height, and 55mm in length.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 21 VDC.
It has a 3 NO/3 NC contact configuration.
The maximum contact current rating is 8 A.
The operating temperature range is -25°C to 70°C.
It is designed for through-hole mounting.
