| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

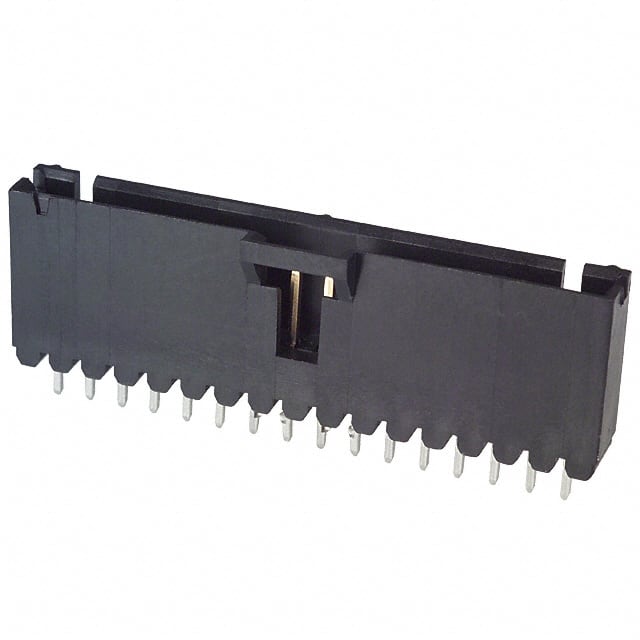

TE Connectivity 6-104909-5 is a 16-position, single-row, shrouded header (male pins) with a 2.54mm pitch. It is designed for board-to-board or cable connections. The header features a 4-wall shroud for polarization and a keying slot for proper alignment.
The contacts are square brass pins with tin plating (15.0µin thickness). The overall contact length is 13.84mm, with a mating length of 5.84mm. It is rated for 3A current and operates over -65°C to 105°C. The insulation material is black thermoplastic with UL94 V-0 flammability rating.
The component is through-hole mounted with press-fit and solder termination options. It includes a latch holder for secure fastening. The insulation height is 13.60mm.
Suitable for various electronic assemblies requiring reliable interconnection, such as industrial controls, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1,728+ | $2.89 | $2.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm (0.100").
3A.
Through hole.
-65°C to 105°C.
Black thermoplastic, UL94 V-0 rated.
Tin, 15.0µin thick.
