| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

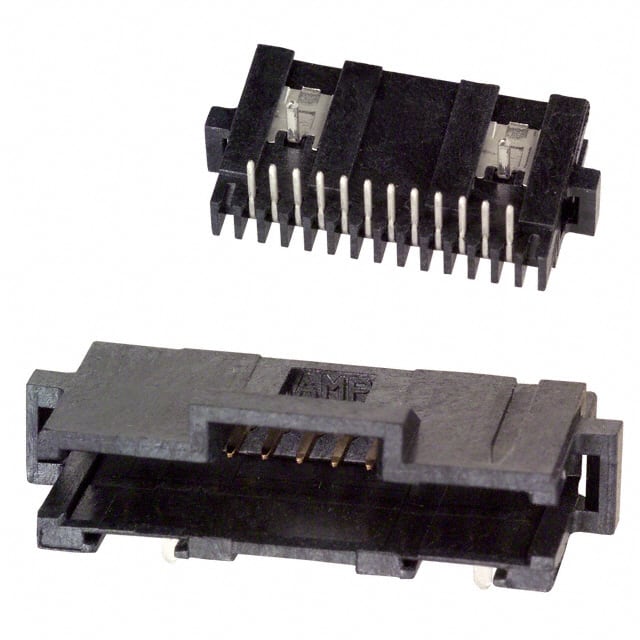

The TE Connectivity 6-104074-1 is a 12-position, single-row, right-angle pin header with a 1.27mm (0.050") pitch. It is a shrouded header with a 2-wall design and a latch holder for secure locking. The connector is designed for through-hole mounting and solder termination. The insulation is black thermoplastic (UL94 V-0), and the contacts are copper alloy with tin plating (30.0µin). The operating temperature range is -65°C to 105°C, and the voltage rating is 30VAC.
This header is suitable for board-to-board or cable connections, with a board guide feature to assist alignment. The right-angle orientation allows for low-profile mating. The connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited). The contact length is 3.18mm, and the insulation height is 4.83mm.
Typical applications include industrial control systems, data communication equipment, and consumer electronics where reliable, high-density interconnections are required. The tin finish ensures good solderability and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.35 | $4.35 |
| 23+ | $3.48 | $3.48 |
| 115+ | $3.11 | $3.11 |
| 506+ | $2.80 | $2.80 |
| 1,012+ | $2.67 | $2.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions in a single row.
1.27mm (0.050").
Through hole, right angle.
30VAC.
-65°C to 105°C.
Tin, 30.0µin (0.76µm).
UL94 V-0.
