| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
416 pcs
|
416 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Contact Underplating | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| contact_plating_detail |

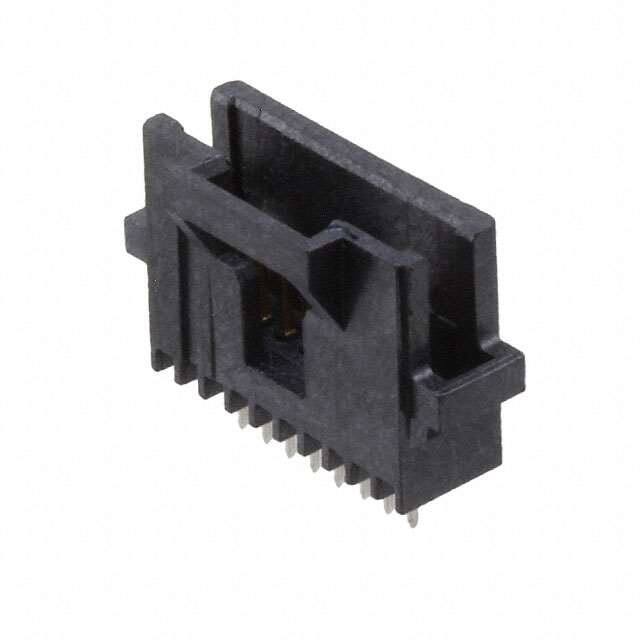

The TE Connectivity 6-104071-0 is a vertical, shrouded header assembly designed for board-to-board or cable applications. It features 8 positions in a single row with a 1.27mm pitch, making it suitable for compact interconnect designs.
The header uses male pin contacts made of copper alloy with a tin finish (30.0µin) over a nickel underplating. The housing is molded from black LCP thermoplastic with a UL94 V-0 flammability rating, ensuring reliable performance in a wide operating temperature range of -65°C to 105°C.
This through-hole component is terminated via solder and includes a latch holder fastening system for secure mating. The shrouded 2-wall design provides pin protection and alignment during connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.75 | $2.75 |
| 32+ | $2.15 | $2.15 |
| 128+ | $1.95 | $1.95 |
| 512+ | $1.77 | $1.77 |
| 1,024+ | $1.69 | $1.69 |
| 5,024+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm.
It has 8 positions, all loaded.
Through hole mounting with solder termination.
The voltage rating is 30VAC.
-65°C to 105°C.
Yes, it has a shrouded 2-wall design with a latch holder fastening system.
