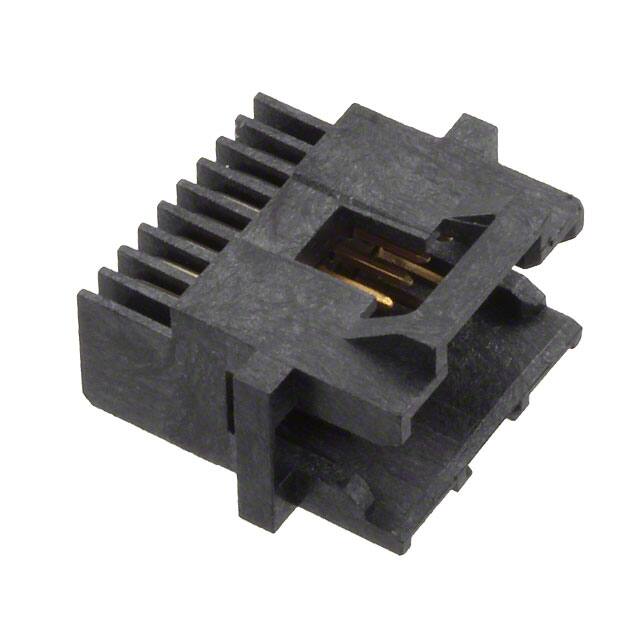

6-104069-0 14-position male pin header with 1.27mm pitch, right-angle through-hole mounting, and tin-plated copper alloy contacts.
Mfr Part #:

6-104069-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
14-position male pin header with 1.27mm pitch, right-angle through-hole mounting, and tin-plated copper alloy contacts.
✓ Total Stock: 53 pcs
$ Price Range: $2.56 - $4.50

6-104069-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6-104069-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

6-104069-0 Description

Short technical summary and product information.

The TE Connectivity 6-104069-0 is a 14-position, 2-row shrouded header with a 1.27mm (0.050") pitch. Designed for board-to-board or cable applications, this connector features a right-angle through-hole mounting style and a 2-wall shrouded housing with latch holder fastening.



The header has a row spacing of 2.54mm (0.100") and a contact length of 3.18mm (0.125"). Contacts are made of copper alloy with a tin finish of 30.0µin (0.76µm). The insulation is black thermoplastic rated UL94 V-0 for flammability, with an insulation height of 7.37mm (0.290"). It includes a board guide feature.



Operating temperature range is -65°C to 105°C with a voltage rating of 30VAC. All 14 positions are loaded.

6-104069-0 Quick Information

Product Type: Shrouded Header
Series: AMPMODU System 50
Canonical Name: TE Connectivity 6-104069-0 14 Position 1.27mm Pitch Right Angle Shrouded Header
Subcategory: Shrouded Header

6-104069-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6-104069-0 Estimated Pricing

Qty Low High
1+ $4.50 $4.50
10+ $4.48 $4.48
25+ $3.51 $3.51
99+ $3.17 $3.17
528+ $2.71 $2.71
1,023+ $2.57 $2.57
2,508+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

6-104069-0 Features

  • 14-position shrouded header with 1.27mm pitch.
  • Right-angle through-hole mounting with solder termination.
  • 2-wall shrouded housing with latch holder fastening.
  • Tin-plated copper alloy contacts with 30µin finish.
  • UL94 V-0 rated black thermoplastic insulation.

6-104069-0 Applications

  • Board-to-board interconnection with 1.27mm pitch.
  • Right-angle cable-to-board connections.
  • Space-constrained right-angle connector designs.

6-104069-0 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

14 positions, all loaded, in 2 rows.

What is the pitch of this header?

1.27mm (0.050") with a row spacing of 2.54mm (0.100").

What is the voltage rating?

30VAC.

What mounting type does this header use?

Right-angle through-hole with solder termination.

Is the header shrouded?

Yes, shrouded with 2-wall design and latch holder fastening.
