| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Area Plating Gold Thickness | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Solder Tail Plating Tin-Lead Thickness | |
| Style | |
| Termination | |
| Termination Style | |
| Underplating Nickel Thickness | |
| Voltage Rating |

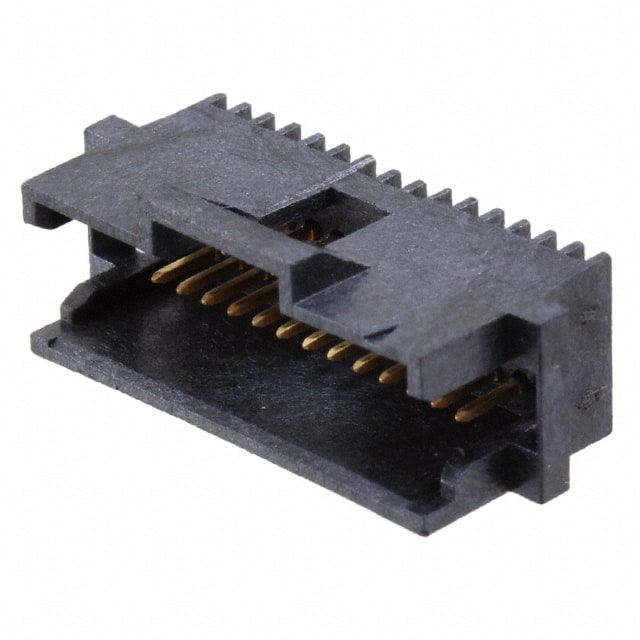

The TE Connectivity 6-104068-2 is a 26-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 1.27mm (0.050") pitch and 2.54mm (0.100") row spacing, with a through-hole mounting style and solder termination.
The header uses a copper alloy contact with a tin finish (30.0µin) and gold plating on the contact area (0.76µm min). The housing is made of black LCP thermoplastic with a UL94 V-0 flammability rating. It includes a latch holder fastening type and a 2-wall shroud for mating alignment.
Operating temperature range is -65°C to 105°C, with a voltage rating of 30VAC. The insulation height is 9.91mm (0.390") and contact length is 3.18mm (0.125"). All 26 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 23+ | $7.57 | $7.57 |
| 69+ | $6.54 | $6.54 |
| 966+ | $5.73 | $5.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 26 positions arranged in 2 rows.
The voltage rating is 30VAC.
It is a through-hole mounting type with solder termination.
The operating temperature range is -65°C to 105°C.
Yes, it features a shrouded - 2 wall design with a latch holder fastening type.
The contact finish is tin with a thickness of 30.0µin (0.76µm), and the contact area is plated with 0.76µm min gold.
