| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

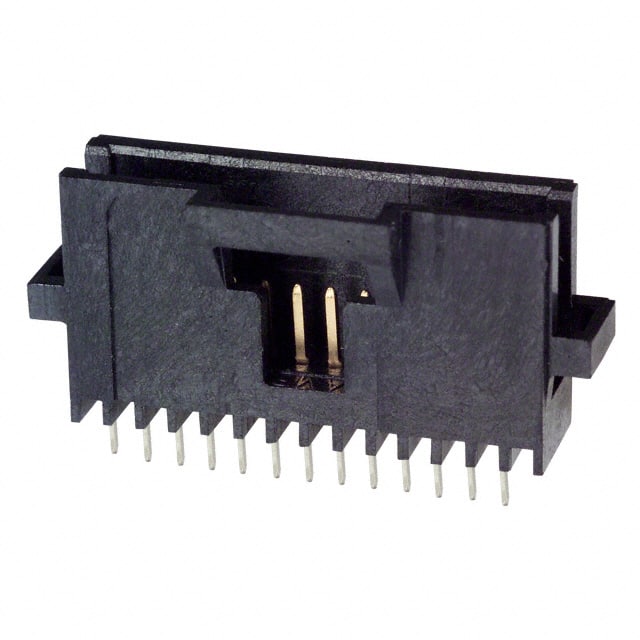

The TE Connectivity 6-104068-1 is a 24-position, 2-row shrouded header connector designed for board-to-board or cable applications. It features a 1.27mm pitch and a 2.54mm row spacing, making it suitable for compact designs requiring a reliable connection.
This header has a shrouded 2-wall design with a latch holder fastening type for secure mating. The contacts are male pins made of copper alloy with a tin finish of 30.0µin. The connector is rated for 30VAC and has an operating temperature range of -65°C to 105°C.
The insulation is made of black thermoplastic with a UL94 V-0 flammability rating. The mounting type is through hole with solder termination, and the contact length is 3.18mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.68 | $6.68 |
| 10+ | $5.21 | $5.21 |
| 24+ | $5.18 | $5.18 |
| 48+ | $5.12 | $5.12 |
| 120+ | $4.74 | $4.74 |
| 264+ | $4.53 | $4.53 |
| 504+ | $4.39 | $4.39 |
| 1,008+ | $4.18 | $4.18 |
| 2,520+ | $3.85 | $3.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 24 positions, all loaded, in a 2-row configuration.
The pitch is 1.27mm (0.050").
The voltage rating is 30VAC.
The mounting type is through hole with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
Yes, it has a shrouded 2-wall design with a latch holder fastening type.
