| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

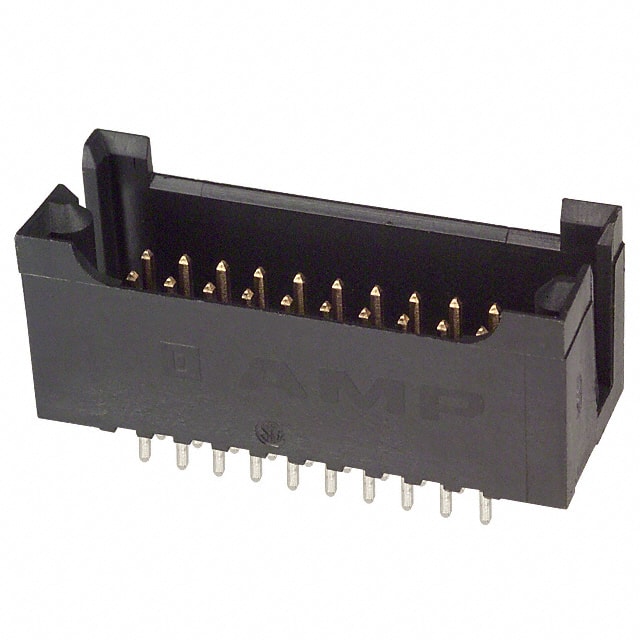

The TE Connectivity 6-102567-1 is a 20-position, 2-row shrouded header with male pins, designed for through-hole mounting. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard 0.100" grid PCBs. The connector uses a push-pull fastening mechanism and has a 4-wall shrouded design for improved mating alignment and pin protection.
The header has a square pin contact shape made of copper alloy with a tin finish (15.0µin / 0.38µm thickness). The contact length is 4.57mm (0.180") and the insulation height is 13.97mm (0.550"). Termination is via solder. This connector is suitable for wire-to-board applications requiring a reliable, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.55 | $6.55 |
| 52+ | $4.95 | $4.95 |
| 104+ | $4.72 | $4.72 |
| 520+ | $4.21 | $4.21 |
| 1,040+ | $4.01 | $4.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 20 positions arranged in 2 rows.
Through hole mounting with solder termination.
Yes, it is a shrouded - 4 wall design.
Copper alloy contacts with a tin finish (15.0µin / 0.38µm).
