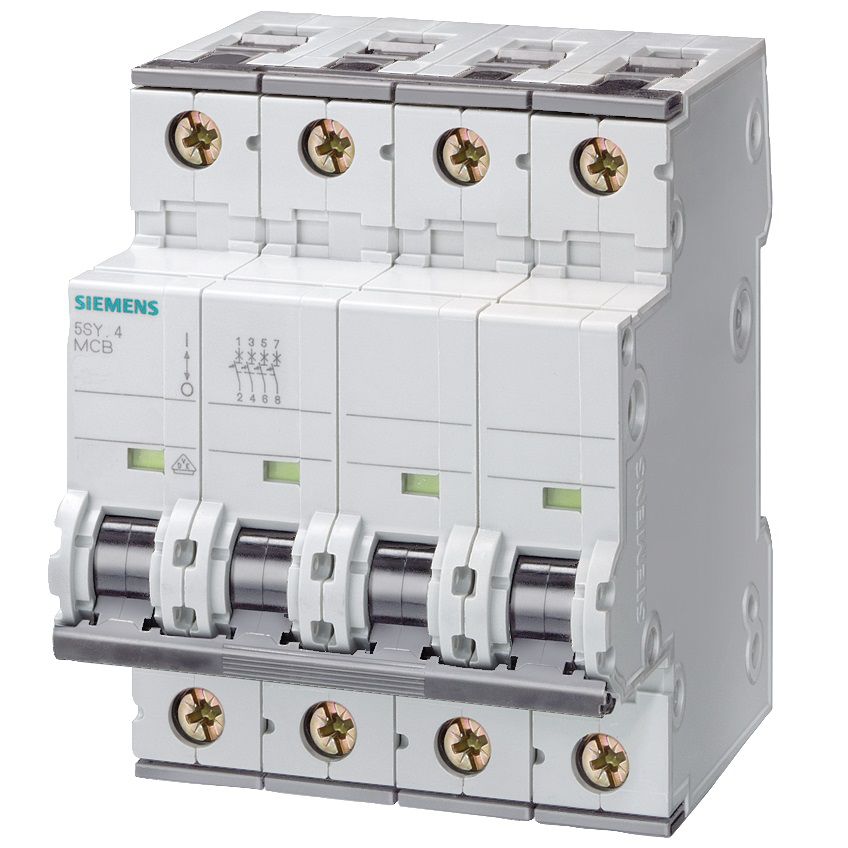

The Siemens 5SY4625-7 is a 4-pole miniature circuit breaker designed for reliable circuit protection in industrial and mechanical engineering applications. It operates with a rated supply voltage of 400V AC and a rated current of 25A, featuring a Type C tripping characteristic suitable for inductive loads.
This circuit breaker offers a switching capacity of 10kA according to EN 60898 and 20kA according to IEC 60947-2. It is built with a quick assembly system for DIN rail mounting and has a mechanical service life of typically 10,000 switching cycles. The device includes features such as neutral conductor switching, touch protection, and is halogen-free and silicon-free.
With an IP20 protection class when connected, the 5SY4625-7 is suitable for use in environments with an ambient temperature range of -40°C to +70°C. Its compact design with a width of 72mm and installation depth of 70mm makes it a versatile component for various electrical installations. It also supports connectable conductor cross-sections from 0.75 to 35 mm².
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated supply voltage for the Siemens 5SY4625-7 is 400V AC.
The rated current for the Siemens 5SY4625-7 is 25A.
The Siemens 5SY4625-7 is a 4-pole miniature circuit breaker.
The tripping characteristic class for the Siemens 5SY4625-7 is C.
The switching capacity current acc. to EN 60898 is 10 kA, and acc. to IEC 60947-2 is 20 kA.
The ambient temperature range for operation is -40°C to +70°C.
The RoHS status is RoHS3 Compliant.
