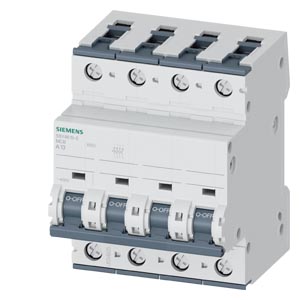

The Siemens 5SY4613-5 is a supplementary protector belonging to the 5SY4 series. This device is rated for 13 Amps and operates at a voltage of 400V AC. It is designed for DIN rail mounting, making installation straightforward in standard electrical enclosures.
This supplementary protector offers a rated short-circuit breaking capacity of 10 kA at 400V (EN 60898) and 20 kA at 400V (IEC 60947-2). The release characteristic is Curve A. It has 4 poles, including N-neutral, and supports concurrently switching N-neutral.
Environmental specifications include an IP20 degree of protection and a pollution degree of 3. The operating ambient temperature range is from -40 °C. It is suitable for use with multi-wired or solid-core conductors up to 0.75 mm².
This component is UL1077 rated and also holds CE, EAC, and VDE approvals, indicating compliance with various international standards. Its dimensions are 72mm width, 70mm depth, 3.74 inches length, and 3.27 inches height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 13 A.
The rated voltage is 400 V.
It has 4 poles.
It is designed for DIN Rail mounting.
The minimum operating ambient temperature is -40 °C.
The degree of protection is IP20.
The rated short-circuit breaking capacity Icn EN 60898 at 400 V is 10 kA.
