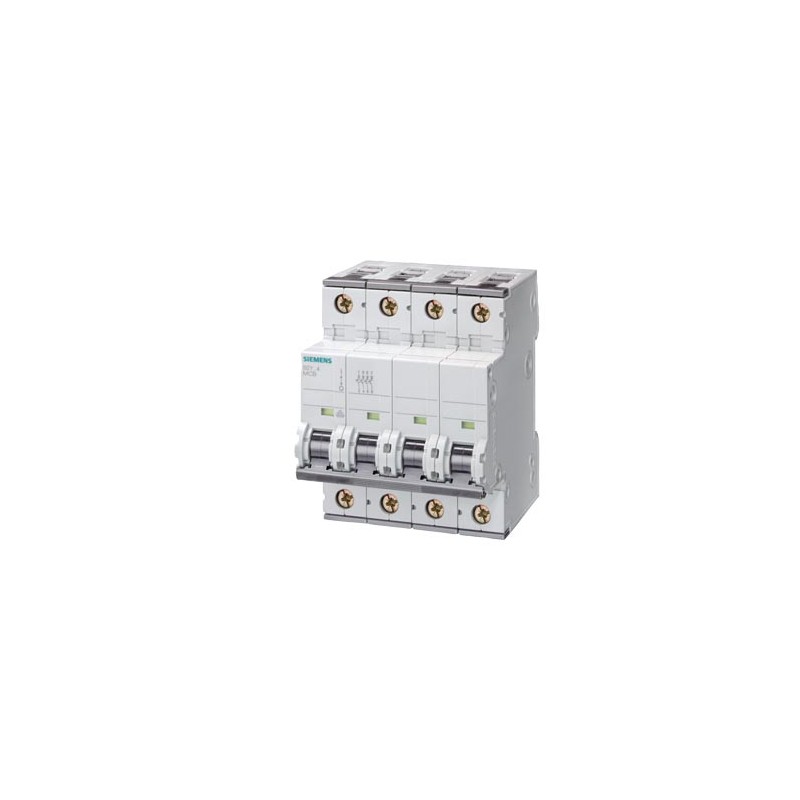

The Siemens 5SY4602-7 is a miniature circuit breaker from the SENTRON product brand, designed for robust performance in industrial engineering and industry applications. This 4-pole (3P+N) device operates with a rated supply voltage of 400V AC and features a tripping characteristic class C.
Key electrical specifications include a 2A operational current at 35°C, a switching capacity of 10kA according to EN 60898, and a breaking capacity of 5kA according to UL 1077. The circuit breaker offers a mechanical service life of 10,000 switching cycles and is rated for overvoltage category III with a degree of pollution 3.
Designed for ease of installation, it supports conductor cross-sections from 0.75 mm² to 35 mm² (solid/stranded) and features a quick assembly system for DIN rail mounting. The dimensions are 90mm in height, 72mm in width, and 76mm in depth, with an installation depth of 70mm. It also includes features like combined terminals, neutral conductor switching, and is sealable and silicon-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is rated at 2A at 35°C.
The rated supply voltage is 400V AC.
It is a 4-pole (3P+N) circuit breaker.
The tripping characteristic class is C.
The breaking capacity is 10kA according to EN 60898 and 5kA according to UL 1077.
It uses DIN rail mounting with a quick assembly system.
Yes, the product is halogen-free.
