| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

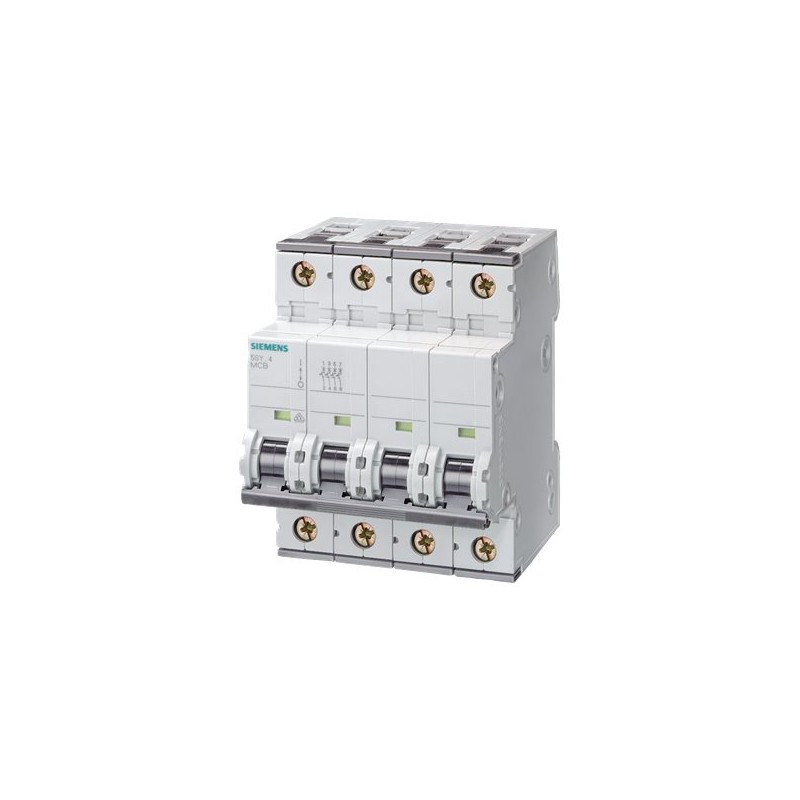

The Siemens 5SY4425-6 is a 4-pole miniature circuit breaker designed for reliable circuit protection. It offers a current rating of 25A and a voltage rating of 400V, with an interrupting rating of 10kA.
This circuit breaker is suitable for DIN rail mounting, making installation straightforward in industrial and commercial electrical panels. The B trip curve provides specific overcurrent protection characteristics.
Key specifications include a 4-pole configuration, 25A current, 400V voltage, and 10kA interrupting capacity. The housing width is 70mm. It is designed for applications requiring robust and dependable circuit interruption.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Siemens 5SY4425-6 has a current rating of 25A.
The voltage rating for the 5SY4425-6 is 400V.
The Siemens 5SY4425-6 is a 4-pole circuit breaker.
The 5SY4425-6 uses DIN rail mounting.
The interrupting rating of the 5SY4425-6 is 10kA.
The trip curve for the Siemens 5SY4425-6 is B.
