| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Country of Origin | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Terminal Type | |
| Voltage Rating | |
| Width |

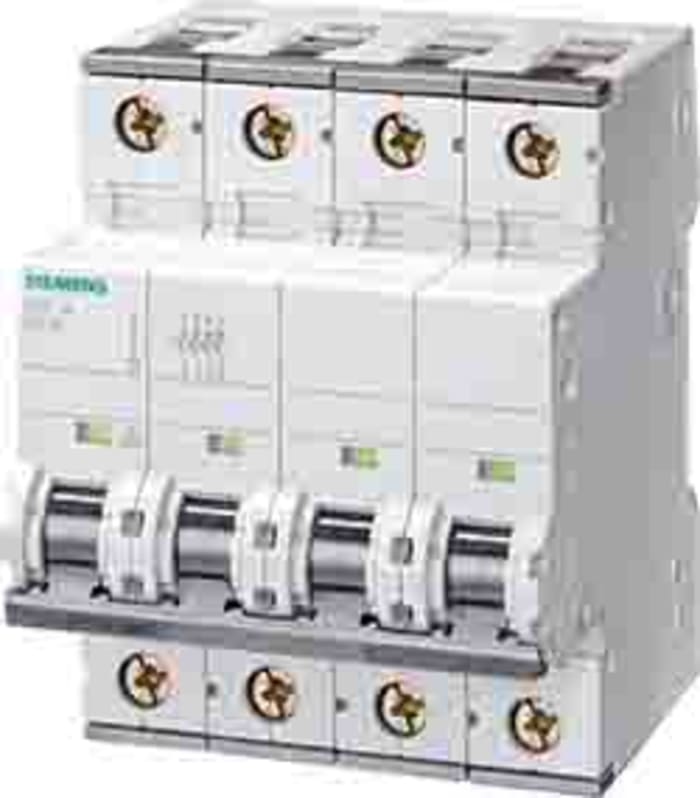

This Siemens SENTRON 5SY4 Miniature Circuit Breaker is a 4-pole device designed for circuit protection. It features a current rating of 500mA and a breaking capacity of 10kA, ensuring reliable protection against overloads and short circuits.
The circuit breaker operates at a rated AC voltage of 400V and a rated DC voltage of 72V. It is designed for DIN rail mounting and features screw terminals for secure connections. The IP20 rating indicates protection against solid objects larger than 12.5mm.
With approvals from CCC, CE, EAC, IMQ, RCM, UR, and VDE, this circuit breaker is suitable for various industrial and building applications. It is manufactured in Germany and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated AC voltage is 400V AC.
The current rating is 0.5A.
The tripping characteristics are Type D.
The breaking capacity is 10kA.
It mounts on a DIN rail.
It complies with CCC, CE, EAC, IMQ, RCM, UR, and VDE standards.
