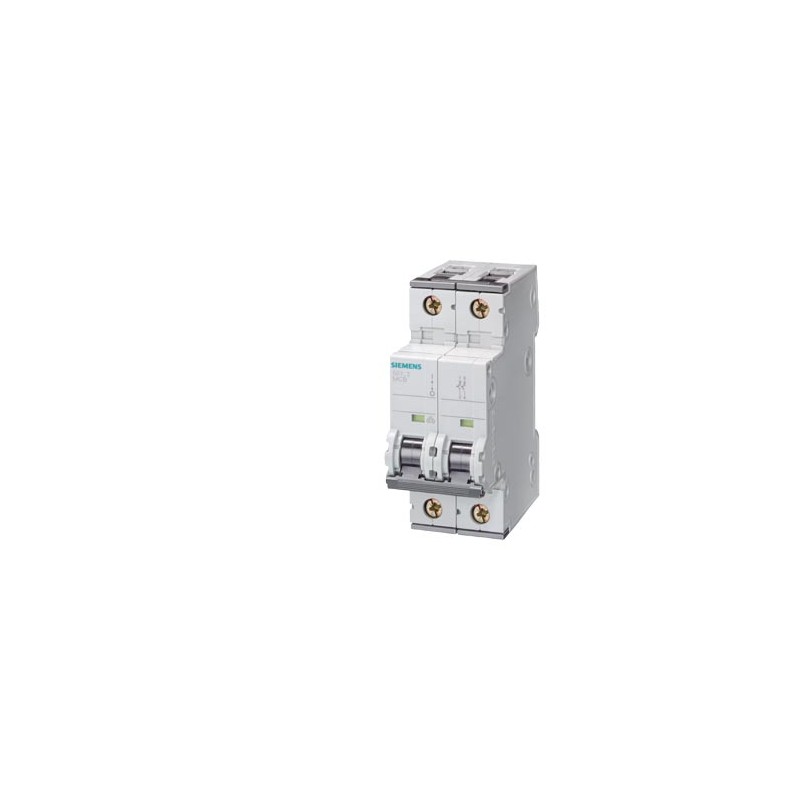

The Siemens 5SY4215-8 is a miniature circuit breaker designed for power distribution and low voltage switchgear applications. It offers a 2-pole configuration with a rated operational current of 1.6A at 35°C and a supply voltage of 400V AC.
This circuit breaker features a Type D tripping characteristic, suitable for applications requiring higher inrush current handling. Its switching capacity is rated at 10kA according to EN 60898 and 35kA according to IEC 60947-2. The device has an insulation voltage (Ui) of 440V AC and an overvoltage category of III.
Designed for easy installation, the 5SY4215-8 is mounted on a DIN rail and has a protection class of IP20 with connected conductors. It is built for mechanical engineering and industrial use, with a typical mechanical service life of 10,000 switching cycles. The unit has a dissipation power loss of 1W per pole at AC rated current in a hot operating state.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operational current for the Siemens 5SY4215-8 circuit breaker is 1.6A at 35°C.
The Siemens 5SY4215-8 circuit breaker has a rated supply voltage of 400V AC.
The 5SY4215-8 features 2 poles.
The switching capacity is 10kA according to EN 60898 and 35kA according to IEC 60947-2.
The Siemens 5SY4215-8 has a Type D tripping characteristic.
The 5SY4215-8 is designed for DIN rail mounting.
