| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Halogen Free | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage | |
| Voltage Rating | |
| Width |

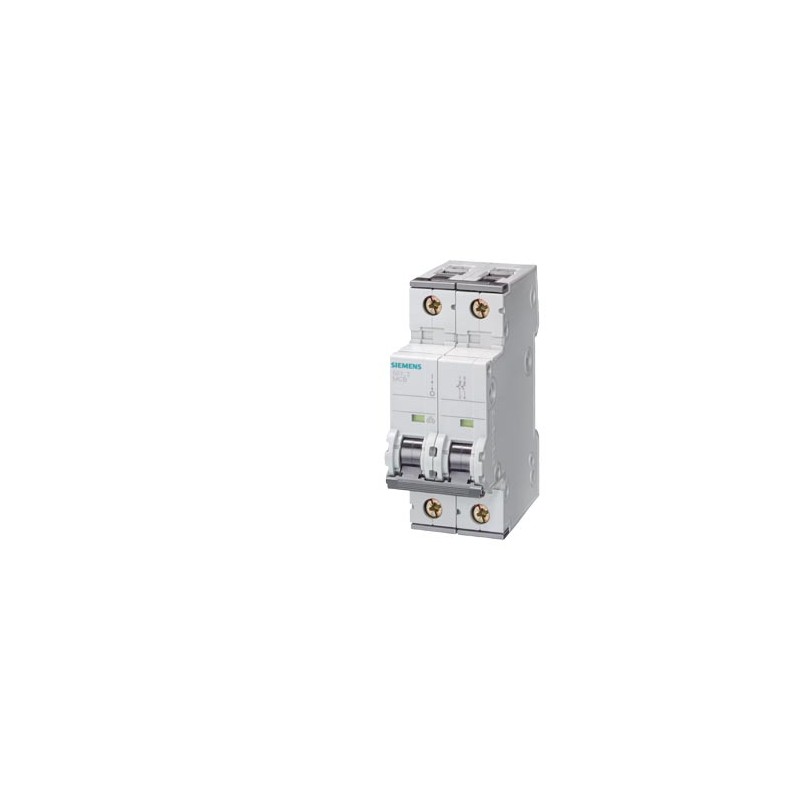

This Siemens 5SY4203-7 is a 2-pole miniature circuit breaker designed for reliable circuit protection. It operates with a rated current of 3A and a voltage rating of 400V AC, suitable for various industrial and mechanical engineering applications.
The breaker utilizes a Type C tripping characteristic, providing protection against overcurrents and short circuits. It offers a significant switching capacity of 10kA according to EN 60898 standards and 15kA at DC according to IEC 60947-2. The device is built for a mechanical service life of 10,000 switching cycles.
Designed for DIN rail mounting, this circuit breaker has a width of 36mm, corresponding to 2 modular width units. It supports conductor cross-sections from 0.75mm² to 35mm² for solid and stranded wires, and up to 25mm² for finely stranded wires with core end processing. The protection class is IP20 with connected conductors.
Additional features include halogen-free construction and sealability. The breaker is suitable for use in environments with a pollution degree of 3 and an overvoltage category of III.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Siemens 5SY4203-7 has a rated operational current of 3A at 35°C and at AC.
The rated supply voltage at AC is 400V, and the insulation voltage is 440V.
The switching capacity is 10kA according to EN 60898, 15kA at DC according to IEC 60947-2, and 35kA according to IEC 60947-2.
This circuit breaker features a Type C tripping characteristic.
It is designed for DIN rail mounting using a quick assembly system.
Yes, the Siemens 5SY4203-7 is halogen-free.
