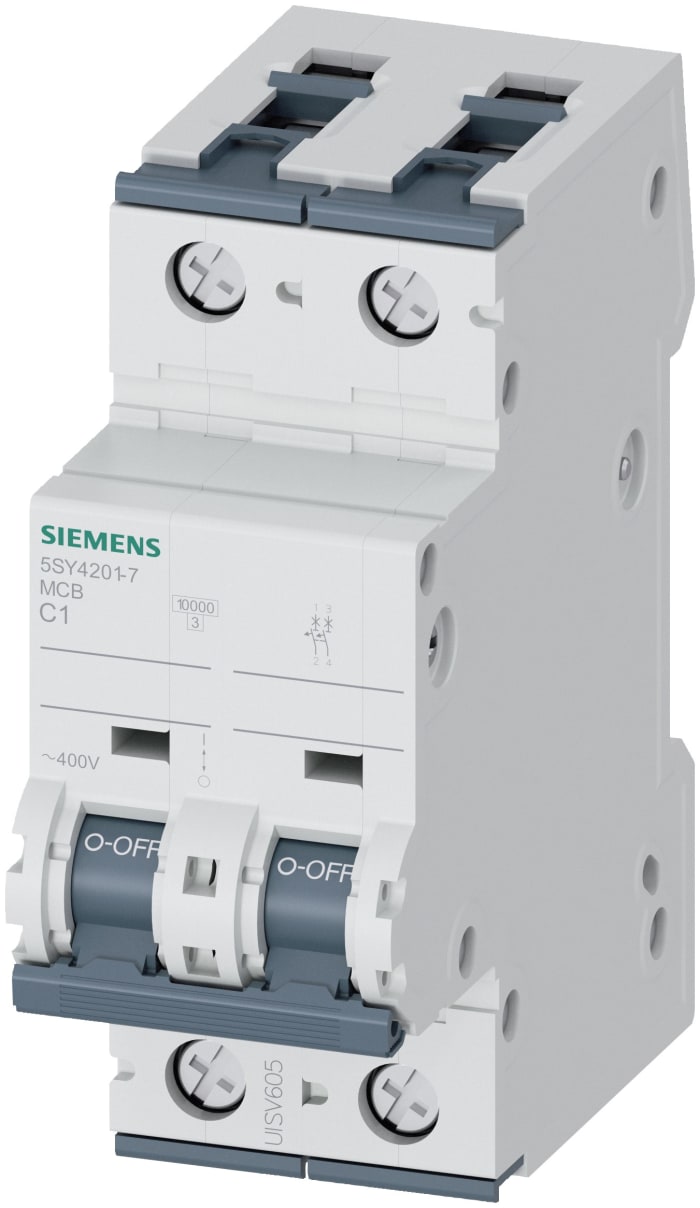

The Siemens SENTRON 5SY4201-7 is a 2-pole miniature circuit breaker (MCB) designed for reliable circuit protection. It features a 1A current rating and a Type C tripping characteristic, suitable for general applications.
This MCB operates at a rated AC voltage of 400V and a rated DC voltage of 60V, with a breaking capacity of 10kA. It is designed for easy installation on a standard DIN rail and has an IP20 rating.
The SENTRON 5SY4 series offers high quality and reliability, with excellent technical properties. These circuit breakers can be combined with various supplementary components for enhanced protection.
Key specifications include a 2-pole configuration, 1A current rating, Type C tripping curve, 400V AC / 60V DC voltage rating, and 10kA breaking capacity. The unit is housed in a 90mm x 76mm x 90mm (H x W x D) enclosure and is manufactured in Germany.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1A.
The rated AC voltage is 400V.
The breaking capacity is 10kA.
It has a Type C tripping characteristic.
It is designed for DIN rail mounting.
