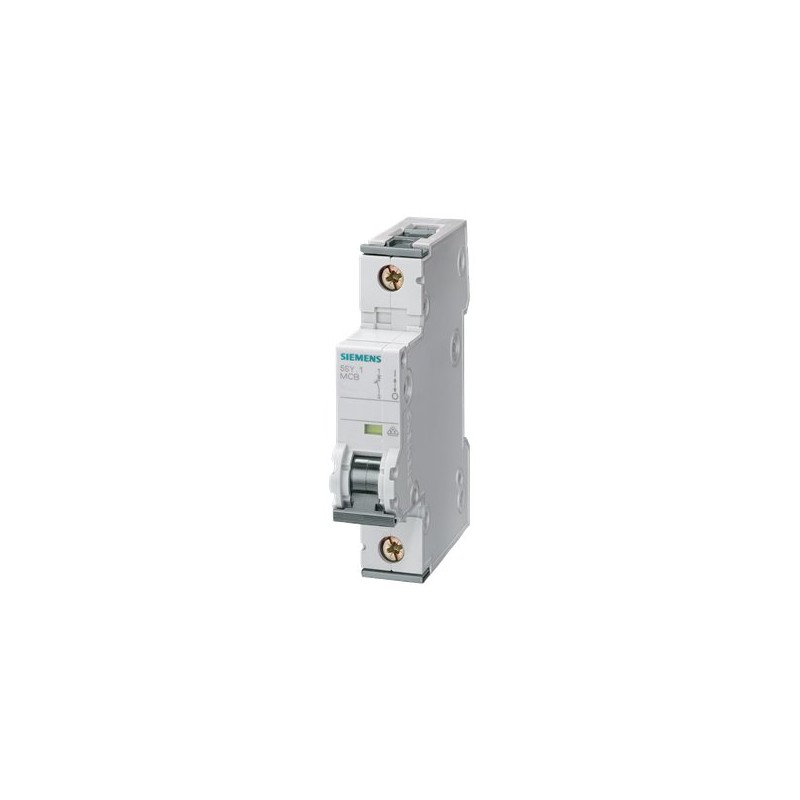

The Siemens 5SY4125-6 is a 1-pole miniature circuit breaker from the SENTRON series, designed for reliable circuit protection in industrial and mechanical engineering applications.
This breaker operates with a rated current of 25A and a supply voltage of 400V AC, featuring a B tripping characteristic. It offers a switching capacity of 10kA according to EN 60898 and 15kA according to IEC 60947-2. The device has an insulation voltage rating of 440V AC and an overvoltage category of III.
Constructed for durability, the 5SY4125-6 has a mechanical service life of typically 10,000 switching cycles. It is designed with touch protection and features combined terminals at both the top and bottom for convenient connection. The breaker supports conductor cross-sections from 0.75 to 35 mm² and has a compact mechanical design with dimensions of 90mm height, 18mm width, and 76mm depth, suitable for DIN rail mounting.
Environmental considerations include halogen-free and silicon-free materials, contributing to safer operation. The protection class is IP20 with connected conductors.
The rated current for the Siemens 5SY4125-6 is 25A at AC.
The supply voltage for the 5SY4125-6 is 400V AC.
The tripping characteristic class for the 5SY4125-6 is B.
The switching capacity current according to EN 60898 is 10 kA.
The 5SY4125-6 has 1 pole.
The protection class is IP20 with connected conductors.
The typical mechanical service life is 10,000 switching cycles.
