| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Depth | |
| Halogen Free | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating | |
| Width |

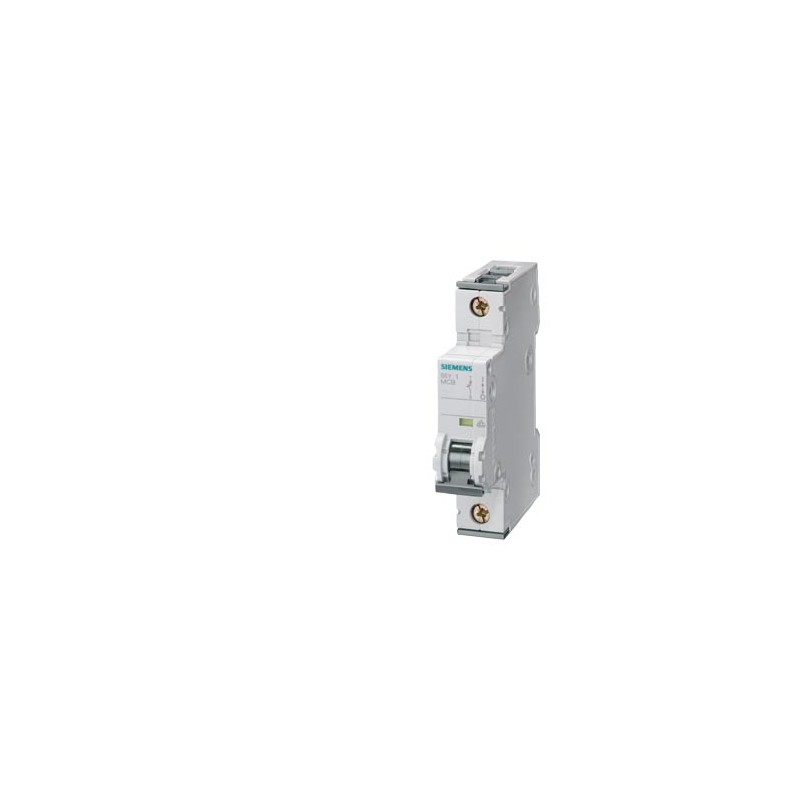

This Siemens 5SY4106-7 is a single-pole miniature circuit breaker from the SENTRON series, designed for reliable overcurrent protection in electrical installations. It operates with a rated voltage of 230/400V AC and features a C-type tripping characteristic, making it suitable for applications with moderate inrush currents.
The circuit breaker has a rated current of 6A at 35°C and a switching capacity of 10kA according to EN 60898. It is designed for DIN rail mounting, with a width of 18mm (1 modular width unit) and an installation depth of 70mm. The device is rated for an overvoltage category of III and a degree of pollution of 3.
Additional features include a mechanical service life of 10,000 switching cycles, halogen-free construction, and the ability to be sealed. It is suitable for use in mechanical engineering and industrial applications. The terminals accommodate conductor cross-sections from 0.75 mm² to 35 mm² (solid/stranded) and 0.75 mm² to 25 mm² (finely stranded with core end processing).
The rated current is 6 A at 35 °C and 6 A at AC.
The switching capacity is 10 kA according to EN 60898, 15 kA at DC according to IEC 60947-2, and 35 kA according to IEC 60947-2.
The supply voltage is rated at 230 V for single-phase operation at AC and 400 V at AC. The insulation voltage (Ui) is 440 V.
It uses DIN rail mounting with a quick assembly system.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
