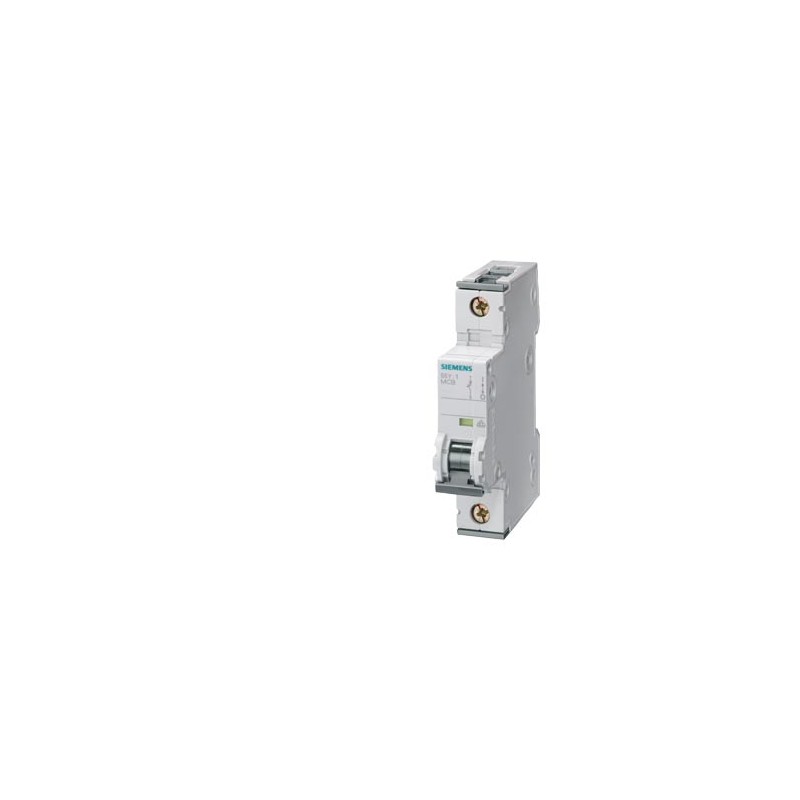

The Siemens 5SY4102-7 is a single-pole miniature circuit breaker designed for reliable overcurrent protection in electrical systems. It operates with a C-type tripping characteristic, suitable for applications requiring higher inrush currents.
This circuit breaker has a rated voltage of 400V AC and a rated current of 2A at 35°C, with derated values at higher temperatures. Its switching capacity is 10kA according to EN 60898 and up to 35kA according to IEC 60947-2, ensuring robust protection against short circuits.
Designed for easy installation, the 5SY4102-7 features DIN rail mounting and screw-type terminals that accept solid or stranded conductors from 0.75mm² to 35mm². It has a mechanical service life of 10,000 switching cycles and meets overvoltage category III and degree of pollution 3 standards.
Additional features include halogen-free construction and suitability for supplementary devices, making it a versatile component for industrial and mechanical engineering applications.
The rated current is 2A at 35°C ambient temperature. At higher temperatures, the current is derated: 1.9A at 40°C, 1.85A at 45°C, 1.8A at 50°C, 1.75A at 55°C, and 1.7A at 60°C.
C-curve, suitable for moderate inrush currents.
The switching capacity varies by standard: 10kA according to EN 60898, 35kA according to IEC 60947-2, and 15kA at DC.
IP20, providing protection against solid objects larger than 12.5 mm.
Height 90mm, width 18mm, depth 76mm, installation depth 70mm.
10,000 switching cycles typical.
DIN rail mounting, occupying 1 modular width unit (18mm).
