| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Current Rating | |
| Depth | |
| Height | |
| Number of Poles | |
| SVHC Present | |
| Width |

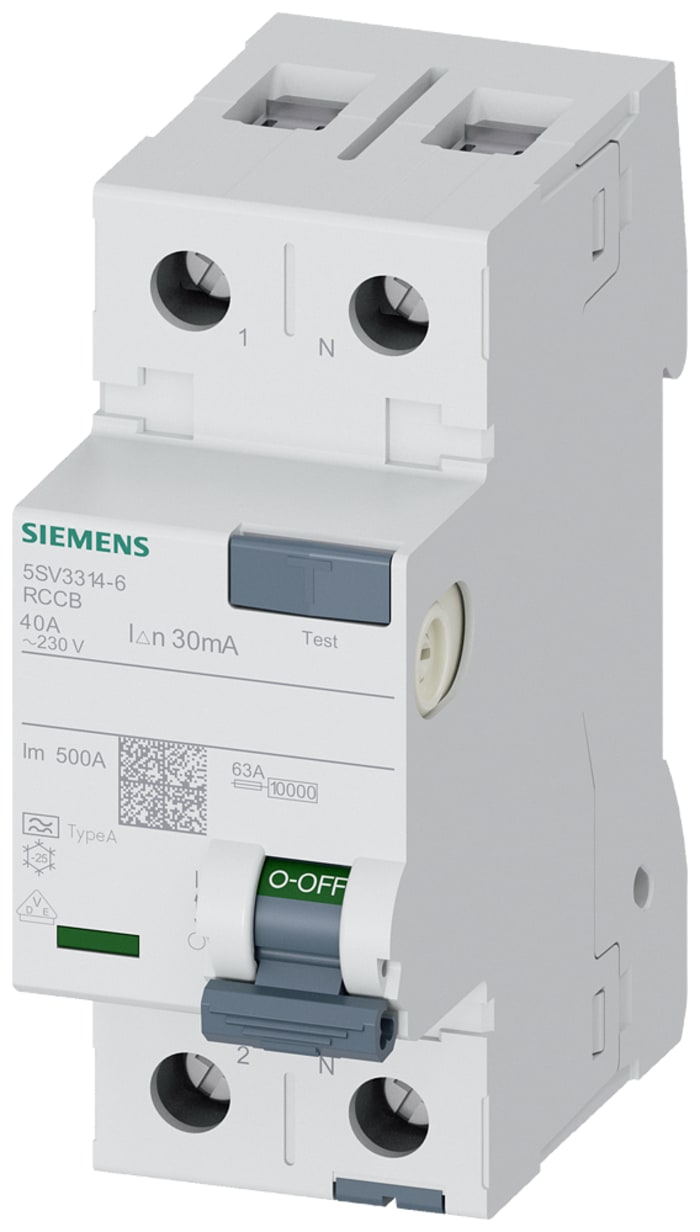

The Siemens 5SV3314-6 is a 2-pole Residual Current Circuit Breaker (RCCB) from the SENTRON 5SV3 series, designed for personnel and fire protection in residential and industrial applications. It features a current rating of 40A and a trip sensitivity of 30mA, with a Type A tripping characteristic.
This circuit breaker offers a breaking capacity of 0.8kA at a rated AC voltage of 230V. It is suitable for DIN rail mounting and has a width of 72mm, height of 90mm, and depth of 70mm. The device provides instantaneous break time and has a surge current withstand capability greater than 1kA.
Designed for reliable performance and excellent quality, the 5SV3 RCCBs are silicone-free and offer protection against residual currents. They are built for easy and safe installation, with an equipment lifespan exceeding 10,000 switching cycles. The operating ambient temperature range is -25°C to +45°C, and the enclosure is rated IP20.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 40A.
It has 2 poles.
The trip sensitivity is 30mA.
It features Type A tripping characteristics.
The breaking capacity is 0.8kA.
The rated AC voltage is 230V.
The dimensions are 90mm height, 70mm depth, and 72mm width.
