| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Halogen Free | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

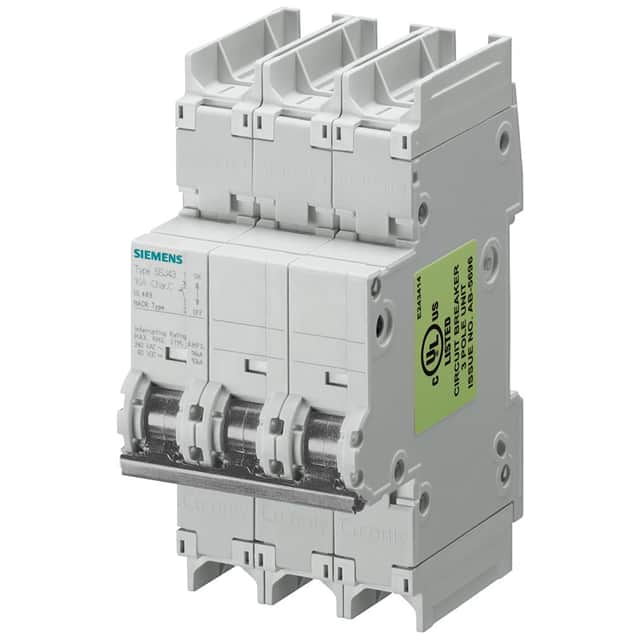

The Siemens 5SJ43167HG41 is a 3-pole miniature circuit breaker from the 5SJ4 series, designed for robust protection in industrial and mechanical engineering applications. It features a C-trip characteristic and an operational current rating of 16A at up to 40°C, with a maximum switching capacity of 14kA according to UL 489 and CSA C22.2 No. 235.
This circuit breaker operates with a rated supply voltage of 400V AC and has an insulation voltage (Ui) of 440V AC. It supports various operating voltages, including up to 240V AC according to UL 489 and CSA C22.2 No. 5-02, and DC voltages up to 125V in a 2-channel configuration. The device offers a protection class of IP20 with connected conductors and IP40 in the handle range.
Designed for DIN rail mounting, the 5SJ43167HG41 has a mechanical service life of typically 10,000 switching cycles. It is halogen-free and sealable, contributing to safety and maintainability in demanding environments. The unit dimensions are 110mm in height, 54mm in width, and 70mm in depth, occupying 3 modular width units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated supply voltage for the Siemens 5SJ43167HG41 at AC is 400 V.
The switching capacity current is 10 kA according to EN 60898 and 15 kA according to IEC 60947-2.
The operational current is 16A at 30°C and 40°C, decreasing slightly to 14.4A at 60°C.
The circuit breaker has a height of 110 mm, a width of 54 mm, and a depth of 70 mm.
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
