| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,000 pcs
|
60000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Diameter | |
| Body Length | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Lead Style | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Voltage Rating |

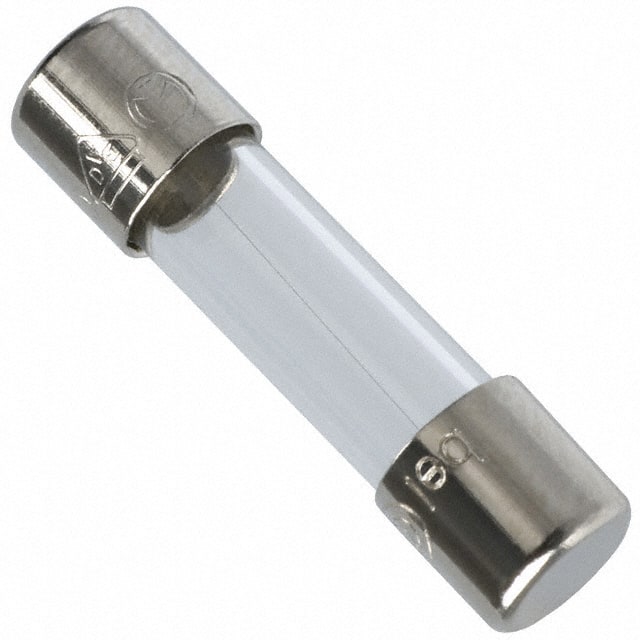

The 5SF 10-R is a quick-acting, glass tube cartridge fuse from Bel Fuse’s Type 5SF/5SFP series. Designed in accordance with IEC 60127-2, sheet 2, it offers a low breaking capacity of 100A at 250VAC. The fuse is rated for 10A and 250VAC with a fast blow response time and a melting I²t of 163 A²s.
Constructed with a glass body, nickel plated brass caps, and matte tin plated copper leads, the 5SF 10-R requires a holder for mounting. It operates over a wide temperature range of -55°C to 125°C. The fuse is approved by CE, CSA, and cURus, and is compliant with RoHS, halogen-free, and lead-free directives.
Typical applications include power supplies, battery chargers, and monitor adapters. Note that this part is end-of-life with a last buy date of September 30, 2024; the recommended replacement series is the 0651C/0651P.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 5+ | $0.61 | $0.61 |
| 10+ | $0.56 | $0.56 |
| 50+ | $0.46 | $0.46 |
| 100+ | $0.43 | $0.43 |
| 250+ | $0.39 | $0.39 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.33 | $0.33 |
| 5,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10A.
250VAC.
100A at 250VAC.
Fast blow.
5mm x 20mm.
163 A²s.
-55°C to 125°C.
