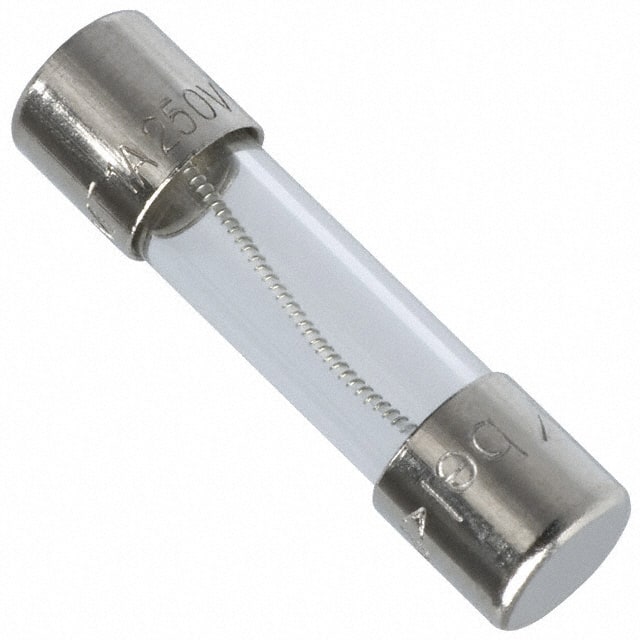

The Bel Fuse 5MT 750-R is a 5x20mm glass tube cartridge fuse designed for overcurrent protection in electronic circuits. It features a medium blow (time-delay) response characteristic, making it suitable for applications with moderate inrush currents.
Rated at 750mA and 250VAC, this fuse offers a breaking capacity of 35A at rated voltage. It is constructed with a glass body, nickel plated brass caps, and matte tin plated copper leads. The fuse is RoHS 2 compliant, halogen free, and lead free.
This component requires a holder for mounting and is available in bulk or tape and reel packaging. It is approved by CE, CSA, and cULus agencies, meeting UL and CSA standard 248-14.
The current rating is 750 mA.
The voltage rating is 250 V AC.
The breaking capacity is 35 A at 250 V AC.
The response time is medium blow (time-delay).
The package is 5mm x 20mm (0.201" Dia x 0.787" L).
It is approved by CE, CSA, and cULus.
Yes, it is RoHS 2 compliant, halogen free, and lead free.
