| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
783 pcs
|
783 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Material | |
| Breaking Capacity @ Rated Voltage | |
| Cap Material | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Lead Material | |
| Lead Style | |
| Maximum power dissipation | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package Code | |
| Response Time | |
| SVHC Present | |
| Typical Cold Resistance | |
| Voltage Drop @ 100%In | |
| Voltage Rating | |
| melting_i2t (@ 10 x rated current) | |
| melting_i2t (Unspecified condition) |

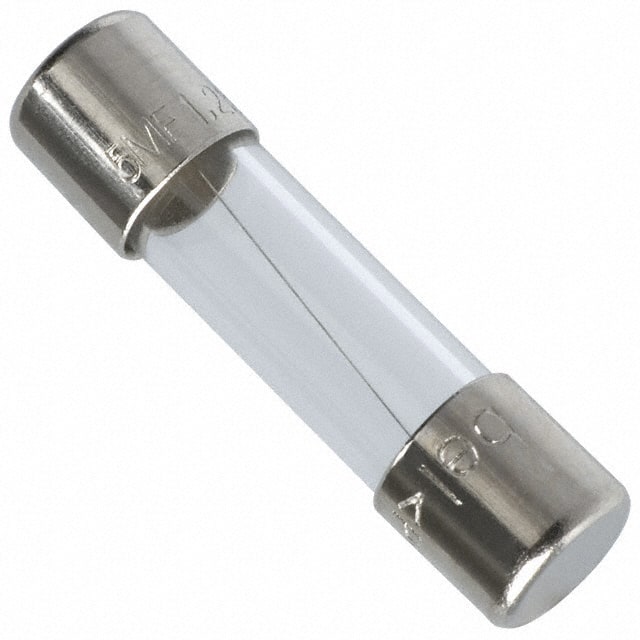

The 5MF 1.5-R is a Type 5MF fast blow glass cartridge fuse from Bel Fuse, designed for overcurrent protection in a wide range of applications. It is rated for 1.5A at 250VAC with a breaking capacity of 200A at rated voltage, ensuring reliable circuit interruption.
Key electrical specifications include a cold resistance of 0.067Ω, typical voltage drop of 0.17V at rated current, and melting I²t of 2.6 A²s at 10x rated current. The fuse dissipates 0.36W maximum and operates over a temperature range of -55°C to 125°C.
Constructed with a glass body, nickel plated brass caps, and matte tin plated copper leads, the fuse is available in a 5x20mm package that requires a holder for mounting. It is compliant with RoHS, REACH, and is lead-free and halogen-free as verified by the datasheet. Safety agency approvals include cULus, CSA, CE, and PSE, meeting UL/CSA standard 248-14.
Typical applications include power supplies, battery chargers, monitors, adapters, and other internal circuit protection in consumer electronics and industrial equipment.
1.5 A.
250 VAC.
200 A at 250 VAC.
Fast Blow.
5mm x 20mm.
-55°C to 125°C.
cULus, CSA, CE, PSE.
