5M80ZT100I5N The Altera 5M80ZT100I5N is a Complex Programmable Logic Device (CPLD) from the MAX V series. It features 64 macrocells and a fast propagation delay of 7.5ns.
Mfr Part #:

5M80ZT100I5N

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera 5M80ZT100I5N is a Complex Programmable Logic Device (CPLD) from the MAX V series. It features 64 macrocells and a fast propagation delay of 7.5ns.
✓ Total Stock: 10,100 pcs
$ Price Range: $0.50

5M80ZT100I5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,100 pcs
On Request
10100 pcs On Request 1 100 On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5M80ZT100I5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Failure Rate
Lead Style
Mounting Type
Operating Temperature
Programmable Type
Supplier Device Package
Voltage
View Similar Products (0)

5M80ZT100I5N Description

Short technical summary and product information.

The Altera 5M80ZT100I5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX V series. This device offers 64 macrocells and 30 I/O pins, making it suitable for various embedded applications requiring mid-range logic capacity and flexibility.



Key electrical specifications include an operating voltage range of 1.71V to 1.89V and a maximum propagation delay of 7.5ns, ensuring rapid logic processing. The device operates within a temperature range of 0°C to 85°C (TJ).

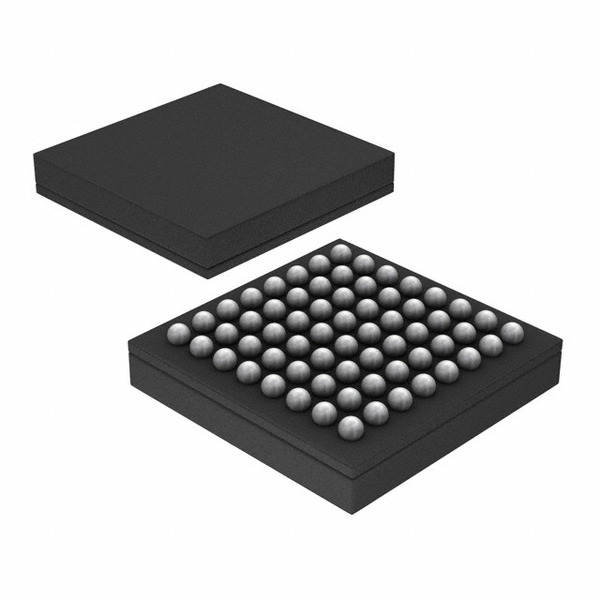

Designed for surface mounting, the 5M80ZT100I5N is housed in a compact 64-TFBGA package, facilitating integration into modern PCB designs. Its in-system programmable nature adds to its design flexibility. This CPLD is ideal for applications such as glue logic, control logic, and peripheral interfacing in industrial, consumer electronics, and communication systems.

5M80ZT100I5N Quick Information

Product Type: CPLD
Series: MAX V
Canonical Name: Altera 5M80ZT100I5N Complex Programmable Logic Device
Subcategory: CPLD

5M80ZT100I5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5M80ZT100I5N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

5M80ZT100I5N Features

  • 64 macrocells for logic implementation.
  • Fast 7.5ns maximum propagation delay.
  • Operates from 1.71V to 1.89V.
  • Surface mount 64-TFBGA package.
  • In-system programmable functionality.

5M80ZT100I5N Applications

  • Embedded system logic integration.
  • Peripheral interfacing and glue logic.
  • Control logic implementation.
  • Digital signal processing tasks.

5M80ZT100I5N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 5M80ZT100I5N?

The internal supply voltage range is 1.71V to 1.89V (nominal 1.8V).

What is the operating temperature range of this CPLD?

0°C to 85°C.

What package does the 5M80ZT100I5N come in?

It is available in a 64-TFBGA package with a supplier device package of 64-MBGA (4.5mm x 4.5mm).

How many logic elements does the 5M80ZT100I5N have?

80 logic elements.

How many macrocells does it contain?

64 macrocells.

What is the maximum propagation delay?

7.5 ns.

How many I/O pins are available?

30 I/O pins.
