Mfr Part #:

5M570ZT144C5N

Mfr Name: Altera

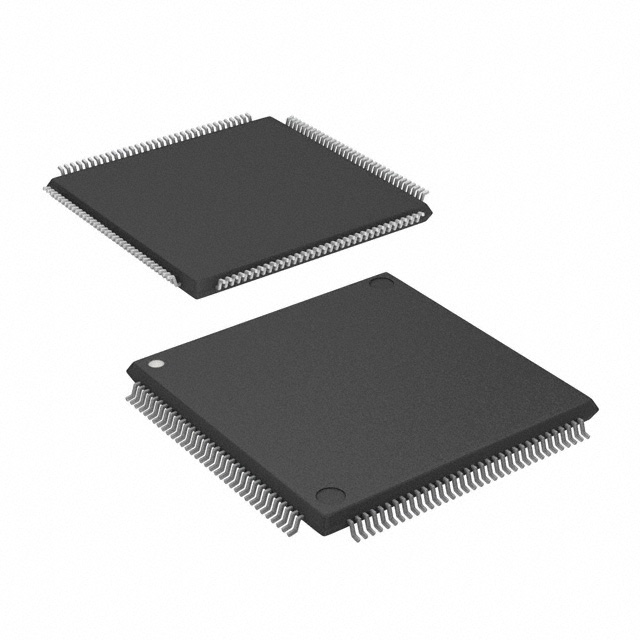

The Intel 5M570ZT144C5N is a high-performance CPLD from the MAX V series. It offers 570 logic elements and 440 macrocells for complex digital designs.

✓ Total Stock: 3,688 pcs

$ Price Range: $2.01

5M570ZT144C5N Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,545 pcs On Request	3545 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	143 pcs On Request	143 pcs	On Request	1	On Request	On Request	1331+	On Request	On Request

5M570ZT144C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Frequency	152MHz
Mounting Type	Surface Mount
Operating Voltage	1.71V to 1.89V
Package / Case	TQFP-144
Propagation Delay	9 ns
Tape & Reel	No

View Similar Products (0)

5M570ZT144C5N Description

Short technical summary and product information.

The Intel 5M570ZT144C5N is a high-performance Complex Programmable Logic Device (CPLD) belonging to Intel's MAX V series. Designed for a wide array of applications requiring programmable logic solutions, this device features 570 logic elements/blocks and 440 macrocells, providing ample resources for intricate digital designs. It supports 114 I/Os for extensive connectivity options.

This CPLD operates within a temperature range of 0°C to 85°C (TJ) and utilizes an internal voltage supply of 1.71V to 1.89V, ensuring compatibility with modern low-voltage systems. With a maximum propagation delay (tpd) of 9 ns, the 5M570ZT144C5N delivers high-speed performance suitable for demanding applications. It is available in a 144-pin TQFP package, facilitating robust and reliable surface mount integration.

The 5M570ZT144C5N is well-suited for applications such as embedded systems, digital signal processing, telecommunications, automotive electronics, industrial automation, and consumer electronics. Its in-system programmability allows for flexible design changes and updates without hardware modifications. Intel provides development tools like Quartus Prime Software and Intel FPGA IP to support the design and deployment process.

5M570ZT144C5N Quick Information

Product Type: CPLD

Series: MAX V

Canonical Name: Intel 5M570ZT144C5N CPLD

Subcategory: CPLD

5M570ZT144C5N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): MSL 3 (168 hours)

REACH Status: REACH Unaffected

5M570ZT144C5N Estimated Pricing

Qty	Low	High
1+	$2.01	$2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

5M570ZT144C5N Features

High logic density with 570 LEs
440 macrocells for complex designs
114 I/Os for extensive connectivity
Fast 9 ns maximum delay time
144-pin TQFP package for surface mount

5M570ZT144C5N Applications

Ideal for embedded systems control
Suitable for digital signal processing
Used in telecommunications applications
Meets automotive electronics requirements
Enables industrial automation logic

5M570ZT144C5N FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the 5M570ZT144C5N?

The 5M570ZT144C5N operates with an internal voltage supply ranging from 1.71V to 1.89V.

What is the operating temperature range of the 5M570ZT144C5N?

The operating temperature range for the 5M570ZT144C5N is 0°C to 85°C (TJ).

What package type is the 5M570ZT144C5N available in?

The 5M570ZT144C5N is available in a 144-pin TQFP package.

What is the maximum propagation delay for the 5M570ZT144C5N?

The maximum propagation delay (tpd) for the 5M570ZT144C5N is 9 ns.

How many logic elements and macrocells does the 5M570ZT144C5N have?

The 5M570ZT144C5N features 570 logic elements/blocks and 440 macrocells.

What is the I/O capability of the 5M570ZT144C5N?

The 5M570ZT144C5N supports 114 I/Os.
