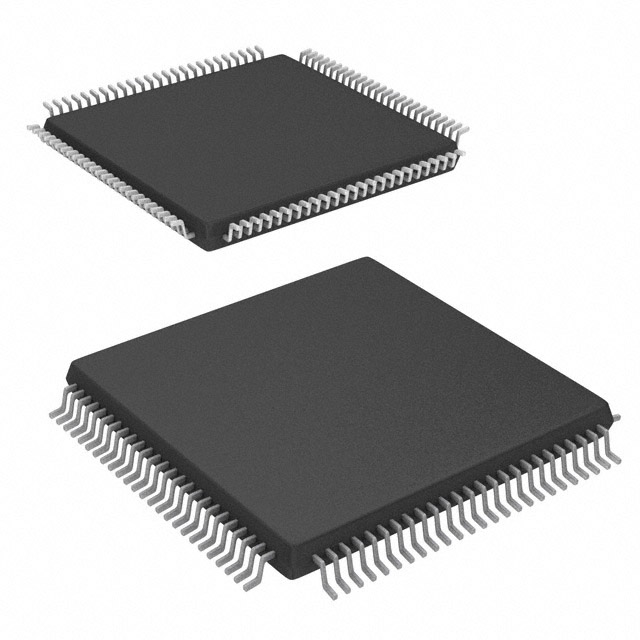

The 5M570ZT100C5N is a complex programmable logic device from Intel's MAX V series. It integrates 440 macrocells and 570 logic elements, providing high logic density for embedded control and interface applications. With a maximum propagation delay of 9 ns and a maximum frequency of 152 MHz, the device supports high-speed signal processing and rapid state machine operation.
The device operates from a 1.71V to 1.89V supply voltage, supporting low-power designs while maintaining performance. It provides 74 user I/O pins and is in-system programmable, allowing flexible configuration updates during development and deployment. The operating temperature range of 0°C to 85°C (TJ) suits consumer and industrial environments.
Packaged in a 100-TQFP (14x14) surface-mount package, the 5M570ZT100C5N is suitable for compact PCB assemblies. The surface-mount mounting type simplifies integration into automated manufacturing processes. Typical application areas include consumer electronics, industrial automation, telecommunications, and medical devices where programmable logic density and reliability are required.
The operating voltage supply range is 1.71V to 1.89V.
The device is available in a 100-TQFP package (14x14 mm).
The operating temperature range is 0°C to 85°C (junction temperature TJ).
The device is listed as RoHS3 Compliant in existing data, though this compliance has not been independently verified.
It has 440 macrocells.
The maximum propagation delay (tpd) is 9 ns.
The maximum frequency is 152 MHz.
