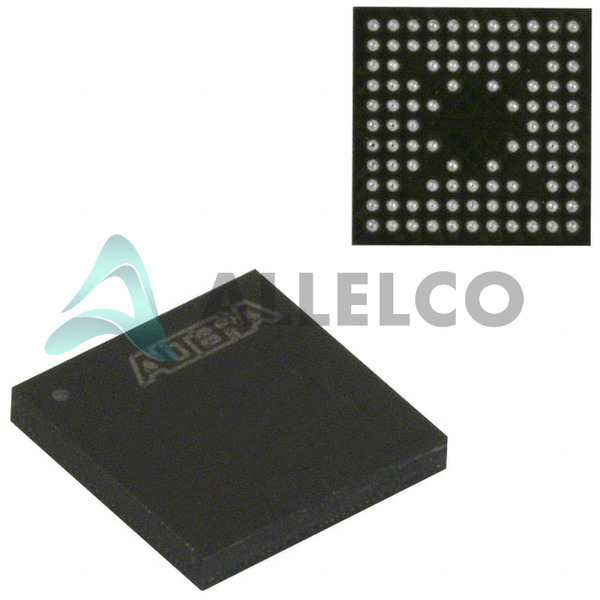

5M570ZM100I5N The Intel 5M570ZM100I5N is a Complex Programmable Logic Device (CPLD) with 440 macrocells and a maximum propagation delay of 9 ns. It operates with an internal supply voltage between 1.71V and 1.89V.
Mfr Part #:

5M570ZM100I5N

Available from 2 distributors
Mfr Name: Altera
Altera
The Intel 5M570ZM100I5N is a Complex Programmable Logic Device (CPLD) with 440 macrocells and a maximum propagation delay of 9 ns. It operates with an internal supply voltage between 1.71V and 1.89V.
✓ Total Stock: 3,822 pcs
$ Price Range: $0.50

5M570ZM100I5N Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2,100 pcs
On Request
2100 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
1,722 pcs
On Request
1722 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5M570ZM100I5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Mounting Type
Number of I/O
Programmable Type
Storage Temperature
Tape & Reel
View Similar Products (0)

5M570ZM100I5N Description

Short technical summary and product information.

The Intel 5M570ZM100I5N is a Complex Programmable Logic Device (CPLD) from the MAX V series. It features 440 macrocells and 570 logic elements/blocks, offering significant logic capacity for embedded applications.



This CPLD has a maximum propagation delay of 9 ns, ensuring fast signal processing. It operates with an internal supply voltage ranging from 1.71V to 1.89V and provides 74 I/O pins. The device is designed for in-system programmability.



Packaged in a 100-TFBGA, the 5M570ZM100I5N is suitable for surface mounting. It operates within a temperature range of -40°C to 100°C (TJ).

5M570ZM100I5N Quick Information

Product Type: CPLD
Series: MAX V
Canonical Name: 5M570ZM100I5N CPLD
Subcategory: Complex Programmable Logic Device

5M570ZM100I5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

5M570ZM100I5N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

5M570ZM100I5N Features

  • 440 macrocells for complex logic.
  • 9 ns maximum propagation delay.
  • 1.71V to 1.89V internal supply voltage.
  • 74 I/O pins available.
  • Surface mount 100-TFBGA package.

5M570ZM100I5N Applications

  • Suitable for embedded system logic.
  • Used in digital signal processing.
  • Ideal for control path implementation.
  • Applicable in interface bridging.

5M570ZM100I5N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum propagation delay for the 5M570ZM100I5N?

The maximum propagation delay (tpd) for the 5M570ZM100I5N is 9 ns.

What is the operating voltage range for the 5M570ZM100I5N?

The internal supply voltage for the 5M570ZM100I5N ranges from 1.71V to 1.89V.

What is the operating temperature range for the 5M570ZM100I5N?

The operating temperature range for the 5M570ZM100I5N is -40°C to 100°C (TJ).

What package type is the 5M570ZM100I5N supplied in?

The 5M570ZM100I5N is supplied in a 100-TFBGA package.

What is the RoHS status of the 5M570ZM100I5N?

The RoHS status is ROHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the 5M570ZM100I5N?

The Moisture Sensitivity Level (MSL) is 1 (Unlimited).
