5M160ZE64A5N Intel 5M160ZE64A5N is a Complex Programmable Logic Device (CPLD) with 128 macrocells, 54 I/O pins, and 7.5ns maximum propagation delay. It is in-system programmable and operates from 1.71V to 1.89V supply.
Mfr Part #:

5M160ZE64A5N

Available from 4 distributors
Mfr Name: Intel
Intel
Intel 5M160ZE64A5N is a Complex Programmable Logic Device (CPLD) with 128 macrocells, 54 I/O pins, and 7.5ns maximum propagation delay. It is in-system programmable and operates from 1.71V to 1.89V supply.
✓ Total Stock: 61,024 pcs

5M160ZE64A5N Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5M160ZE64A5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Mounting Type
Number of I
Number of I/O
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

5M160ZE64A5N Description

Short technical summary and product information.

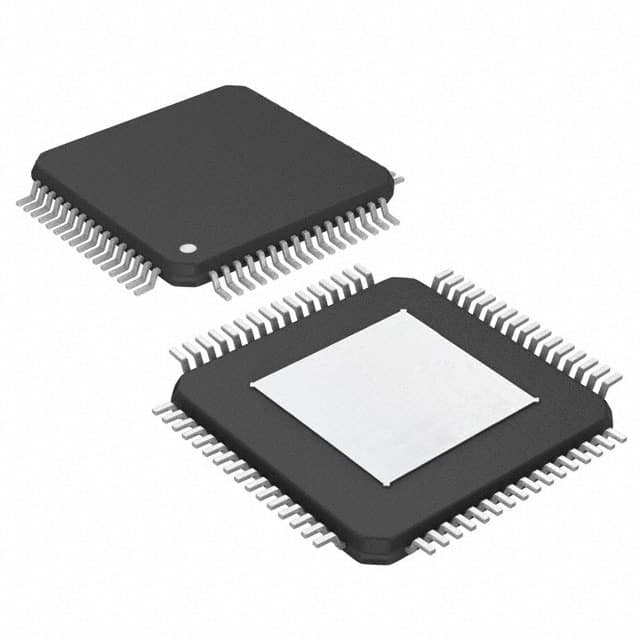

The Intel 5M160ZE64A5N is a Complex Programmable Logic Device (CPLD) featuring 128 macrocells and 160 logic elements. It offers 54 user I/O pins and a maximum propagation delay of 7.5ns, enabling high-speed logic operations. The device is in-system programmable, allowing flexible design updates during manufacturing or field upgrades.



Operating from a supply voltage range of 1.71V to 1.89V, the 5M160ZE64A5N is suitable for low-power applications. It is rated for an extended temperature range of -40°C to 125°C, making it appropriate for industrial and automotive environments.



The device is housed in a 64-TQFP Exposed Pad package (64-EQFP 7x7mm), which provides efficient thermal dissipation through the exposed pad. The surface-mount package is compatible with standard reflow soldering processes.

5M160ZE64A5N Quick Information

Product Type: CPLD (Complex Programmable Logic Device)
Series: MAX V
Canonical Name: Intel 5M160ZE64A5N CPLD, 128 Macrocells, 7.5ns, 64-EQFP
Subcategory: CPLD

5M160ZE64A5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5M160ZE64A5N Features

  • 128 macrocells for complex logic.
  • 54 I/O pins for flexible connectivity.
  • Maximum propagation delay of 7.5ns.
  • In-system programmable for easy updates.
  • Operates from 1.71V to 1.89V.

5M160ZE64A5N Applications

  • Glue logic for industrial control systems.
  • I/O expansion in embedded designs.
  • Power sequencing and management logic.
  • Automotive body control modules.
  • Portable device interface bridging.

5M160ZE64A5N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 5M160ZE64A5N?

The device operates from 1.71V to 1.89V supply.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TJ).

What package does the 5M160ZE64A5N come in?

It is available in a 64-TQFP Exposed Pad package (64-EQFP 7x7mm).

Is the 5M160ZE64A5N RoHS compliant?

The part is listed as RoHS3 Compliant, but this is unverified and low confidence.

How many macrocells does the 5M160ZE64A5N have?

It has 128 macrocells.

What is the maximum propagation delay?

The maximum propagation delay (tpd) is 7.5 ns.

Is the device programmable in-system?

Yes, it is in-system programmable.
