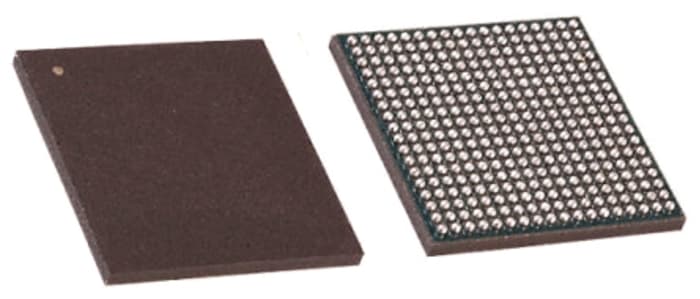

5M1270ZF324C5N The Altera 5M1270ZF324C5N is a Complex Programmable Logic Device from the MAX V series. It features 980 macro cells and 271 user I/Os.
Mfr Part #:

5M1270ZF324C5N

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera 5M1270ZF324C5N is a Complex Programmable Logic Device from the MAX V series. It features 980 macro cells and 271 user I/Os.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.50

5M1270ZF324C5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5M1270ZF324C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Height
Length
Product Type
SVHC Present
View Similar Products (0)

5M1270ZF324C5N Description

Short technical summary and product information.

The Altera 5M1270ZF324C5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX V series. This non-volatile CPLD architecture offers instant-on configuration time and low standby current. It provides 980 macro cells and 271 user I/Os, with a maximum propagation delay of 10 ns and an operating frequency of up to 304 MHz.



Designed for surface mounting, this device comes in an FBGA package with 324 pins. It operates within a supply voltage range of 1.71V to 1.89V and has an operating temperature range of 0°C to 85°C. The device supports in-system programmability and re-programmability.



Key electrical specifications include individual output enable control and a maximum operating frequency of 304 MHz. The mechanical specifications detail a pin count of 324, a height of 1.25mm, and a length of 19mm.

5M1270ZF324C5N Quick Information

Product Type: Complex Programmable Logic Device
Series: MAX V
Canonical Name: Altera MAX V Complex Programmable Logic Device
Subcategory: CPLDs

5M1270ZF324C5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5M1270ZF324C5N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

5M1270ZF324C5N Features

  • 980 macro cells and 271 user I/Os.
  • Maximum propagation delay of 10 ns.
  • Surface mount FBGA package.
  • Operating temperature from 0°C to 85°C.
  • Supports in-system programmability.

5M1270ZF324C5N Applications

  • Used for system glue logic implementation.
  • Enables I/O expansion in embedded systems.
  • Used in power-up sequencing control logic.
  • Ideal for bus interface bridging circuits.
  • Supports instant-on in portable devices.

5M1270ZF324C5N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 5M1270ZF324C5N?

The device operates with a supply voltage between 1.71 V and 1.89 V.

What package type is the 5M1270ZF324C5N available in?

It comes in a 324-pin surface-mount FBGA package.

What is the operating temperature range?

The CPLD operates from 0°C to 85°C.

How many macro cells does the 5M1270ZF324C5N have?

It has 980 macro cells.

How many user I/Os are available?

There are 271 user I/Os.

What is the maximum propagation delay?

The maximum propagation delay is 10 ns.

Is the device in-system programmable?

Yes, it supports in-system programmability.
