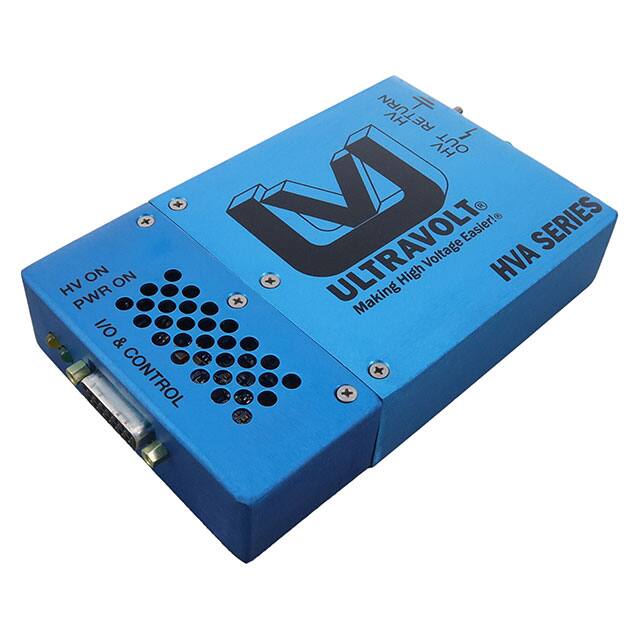

The Advanced Energy UltraVolt HVA series, including the 5HVA24-BP1, offers precision high voltage DC-to-DC conversion. These modules function as high voltage amplifiers, providing high-resolution, programmable DC output with waveform capability greater than 1 kHz. Optimized for bias applications, they deliver excellent line and load regulation, dynamic response, and stability, capable of both sourcing and sinking current.
Key electrical specifications include a 24 VDC ±10% input voltage range and up to 1W of output power. The output current is rated at 200 μA for the 4 kV models, with ripple as low as 0.03% Vpp. Control is managed via a 0 to 10 VDC input, and the unit features precision output voltage and current monitors. The operating temperature range is from +10°C to +45°C.
Designed for robust performance, the 5HVA24-BP1 is an enclosed unit suitable for chassis mounting. Its dimensions are 152.4mm x 96.8mm x 31.8mm. The product highlights include a fast slew rate of 40 V/μs and high bandwidth, with bipolar models available up to 5 kV and unipolar models up to 10 kV. It is recognized as a UL/cUL component and carries the CE Mark for LVD and RoHS compliance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 24 VDC ±10%.
The output power is 1W.
The operating temperature range is +10°C to +45°C.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
