5CSEBA4U19C7N The Intel 5CSEBA4U19C7N is a Cyclone V SE system-on-chip featuring a dual ARM Cortex-A9 MPCore processor at 800 MHz and an FPGA with 40K logic elements. It offers extensive connectivity including CAN, Ethernet, I2C, SPI, USB, and UART.
Mfr Part #:

5CSEBA4U19C7N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel 5CSEBA4U19C7N is a Cyclone V SE system-on-chip featuring a dual ARM Cortex-A9 MPCore processor at 800 MHz and an FPGA with 40K logic elements. It offers extensive connectivity including CAN, Ethernet, I2C, SPI, USB, and UART.
✓ Total Stock: 2 pcs

5CSEBA4U19C7N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5CSEBA4U19C7N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Connectivity
Core Processor
Memory Size
Number of Logic Elements/Cells
Operating Temperature
Package Quantity
Peripherals
Primary Attributes
RAM Size
Speed
Supplier Device Package
View Similar Products (0)

5CSEBA4U19C7N Description

Short technical summary and product information.

The Intel 5CSEBA4U19C7N is a Cyclone V SE System-on-Chip (SoC) that integrates a dual ARM Cortex-A9 MPCore processor with an FPGA fabric containing 40,000 logic elements. The processor operates at a nominal speed of 800 MHz and includes 64 KB of RAM, while the FPGA provides 2931 KB of embedded memory organized in 1509.4 logic array blocks.



The device supports a wide range of connectivity interfaces: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. On-chip peripherals include DMA, power-on reset (POR), and watchdog timer (WDT). The SoC operates from a 1.1 V supply voltage over a temperature range of 0°C to 85°C.

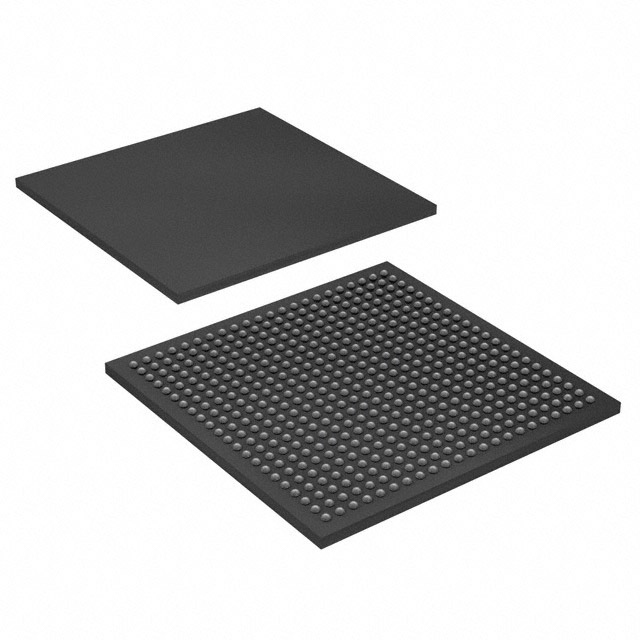

The package is a 484-FBGA (fine-pitch ball grid array) with a supplier device package of 484-UBGA measuring 19x19 mm. It is supplied in tray packaging with 84 units per tray. This SoC is suitable for embedded applications requiring both processor-based control and programmable logic, such as industrial automation, communications, and automotive systems.

5CSEBA4U19C7N Quick Information

Product Type: System-on-Chip (SoC)
Series: Cyclone V SE
Canonical Name: Intel Cyclone V SE SoC with Dual ARM Cortex-A9 MPCore - 5CSEBA4U19C7N
Subcategory: FPGA SoC

5CSEBA4U19C7N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5CSEBA4U19C7N Features

  • Dual ARM Cortex-A9 MPCore at 800 MHz.
  • FPGA with 40,000 logic elements and 2931 KB memory.
  • Operating voltage 1.1 V and temperature 0-85°C.
  • Supports CAN, Ethernet, I2C, SPI, USB, and UART.
  • Packaged in 484-UBGA tray of 84 units.

5CSEBA4U19C7N Applications

  • Industrial control systems requiring real-time performance.
  • Embedded networking and communication gateways.
  • Automotive infotainment and driver assistance.
  • FPGA-accelerated data processing applications.

5CSEBA4U19C7N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor in the 5CSEBA4U19C7N?

It features a dual ARM Cortex-A9 MPCore with CoreSight.

What is the operating clock speed?

The nominal speed is 800 MHz.

How many logic elements does the FPGA contain?

The FPGA contains 40,000 logic elements.

What is the operating voltage range?

The nominal operating supply voltage is 1.1 V.

What is the operating temperature range?

The operating temperature range is 0°C to 85°C.

What package is this device available in?

It is packaged in a 484-FBGA (484-UBGA 19x19 mm) tray.

Is the 5CSEBA4U19C7N RoHS compliant?

It is listed as RoHS3 Compliant (unverified).
