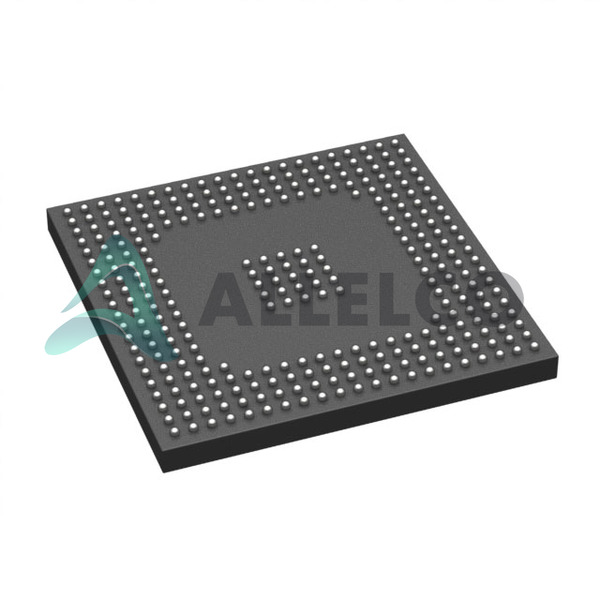

5CGXFC4F7M11C8N The Intel 5CGXFC4F7M11C8N is an FPGA with 50,000 logic elements and 129 I/O pins. It features a surface mount package.
Mfr Part #:

5CGXFC4F7M11C8N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel 5CGXFC4F7M11C8N is an FPGA with 50,000 logic elements and 129 I/O pins. It features a surface mount package.
Total Stock: 23 pcs

5CGXFC4F7M11C8N Available from 1 distributor

Authorised
Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
23 pcs
23 pcs On Request 1 On Request On Request On Request On Request On Request

5CGXFC4F7M11C8N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Supplier Package
Total RAM Bits
Voltage

5CGXFC4F7M11C8N Description

Short technical summary and product information.

The Intel 5CGXFC4F7M11C8N is a Field Programmable Gate Array (FPGA) from the Cyclone V family, specifically the GX series. This device offers 50,000 logic elements and supports 129 I/O pins, making it suitable for a range of digital logic applications.



Key electrical specifications include a total of 2.86 Mb of embedded RAM and an operating voltage range of 1.07V to 1.13V. The operating temperature is specified from 0°C to 85°C (TJ).



This FPGA comes in a 301-TFBGA package, with a supplier package designation of 301-MBGA (11x11). It is designed for surface mount applications.



Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status, though these are noted as unverified.

5CGXFC4F7M11C8N Quick Information

Product Type: FPGA
Series: Cyclone V GX
Canonical Name: Intel 5CGXFC4F7M11C8N FPGA
Subcategory: Field Programmable Gate Array

5CGXFC4F7M11C8N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5CGXFC4F7M11C8N Features

  • 50,000 logic elements available.
  • 129 programmable I/O pins.
  • 2.86 Mb of embedded RAM.
  • Operates at 1.07V to 1.13V.
  • Surface mount 301-TFBGA package.

5CGXFC4F7M11C8N Applications

  • Suitable for digital logic designs.
  • Used in embedded systems.
  • Ideal for signal processing.
  • Customizable hardware acceleration.

5CGXFC4F7M11C8N FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the 5CGXFC4F7M11C8N have?

50,000 logic elements.

How many I/O pins does the 5CGXFC4F7M11C8N have?

129 I/O pins.

What is the operating voltage range of the 5CGXFC4F7M11C8N?

1.07V to 1.13V.

What package type is the 5CGXFC4F7M11C8N available in?

301-TFBGA (supplier package 301-MBGA 11x11).

What is the total RAM bit capacity of the 5CGXFC4F7M11C8N?

2.86 Mb (2,862,080 bits).

What is the operating temperature range of the 5CGXFC4F7M11C8N?

0°C to 85°C.

How many logic array blocks does the 5CGXFC4F7M11C8N have?

18,868 logic array blocks.
