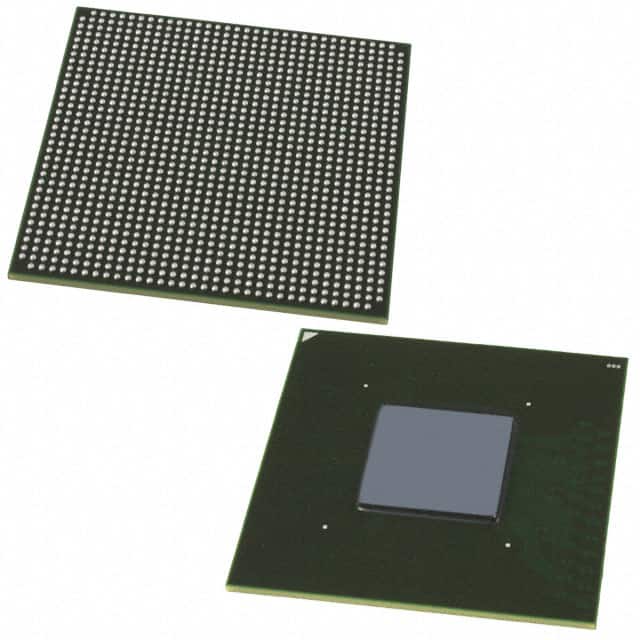

5AGXFB1H4F35I3N Intel Arria V GX FPGA with 300000 logic elements, 544 I/O pins, and 17.36 Mbit embedded memory. Surface mount in 1152-BBGA package.
Mfr Part #:

5AGXFB1H4F35I3N

Available from 1 distributors
Mfr Name: Intel
Intel
Intel Arria V GX FPGA with 300000 logic elements, 544 I/O pins, and 17.36 Mbit embedded memory. Surface mount in 1152-BBGA package.
Total Stock: 15,000 pcs

5AGXFB1H4F35I3N Available from 1 distributor

Authorised
Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
15,000 pcs
15000 pcs On Request 1 On Request On Request On Request On Request On Request

5AGXFB1H4F35I3N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage

5AGXFB1H4F35I3N Description

Short technical summary and product information.

The 5AGXFB1H4F35I3N is an Intel Arria V GX Field Programmable Gate Array (FPGA) featuring 300,000 logic elements organized in 14,151 logic array blocks (LABs). It integrates 17.36 Mbits of embedded RAM, making it suitable for memory-intensive applications. The device provides 544 user I/O pins for flexible connectivity.



This FPGA operates from a supply voltage range of 1.12V to 1.18V and supports a junction temperature range of -40°C to 100°C. It is designed for industrial and embedded applications requiring high performance and reliability.



The device is packaged in a 1152-BBGA, FCBGA exposed pad package using surface mount technology. The supplier device package is 1152-FBGA (35x35mm). Compliance includes RoHS3 and REACH unaffected, with MSL level 1 (unlimited).

5AGXFB1H4F35I3N Quick Information

Product Type: Field Programmable Gate Array (FPGA)
Series: Arria V GX
Canonical Name: Intel Arria V GX Field Programmable Gate Array
Subcategory: FPGAs

5AGXFB1H4F35I3N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5AGXFB1H4F35I3N Features

  • Contains 300000 logic elements for complex designs.
  • Provides 544 user I/O pins for connectivity.
  • Integrates 17.36 Mbits of embedded RAM.
  • Operates from 1.12V to 1.18V supply voltage.
  • Supports surface mount in 1152-BBGA package.

5AGXFB1H4F35I3N Applications

  • Ideal for high-bandwidth digital signal processing.
  • Well-suited for industrial automation controllers.
  • Effective for wireless communication baseband processing.
  • Used in high-performance embedded computing systems.

5AGXFB1H4F35I3N FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the 5AGXFB1H4F35I3N have?

It has 300,000 logic elements.

How many I/O pins does the 5AGXFB1H4F35I3N provide?

It provides 544 user I/O pins.

What is the operating voltage range of this FPGA?

The operating voltage range is 1.12V to 1.18V.

What package does the 5AGXFB1H4F35I3N come in?

It comes in a 1152-BBGA, FCBGA exposed pad package, with supplier device package 1152-FBGA (35x35mm).

How much embedded RAM does the 5AGXFB1H4F35I3N have?

It has 17.36 Mbits of total RAM.

What is the operating temperature range of the 5AGXFB1H4F35I3N?

The junction temperature range is -40°C to 100°C.

Is the 5AGXFB1H4F35I3N a surface mount device?

Yes, it is a surface mount device.
