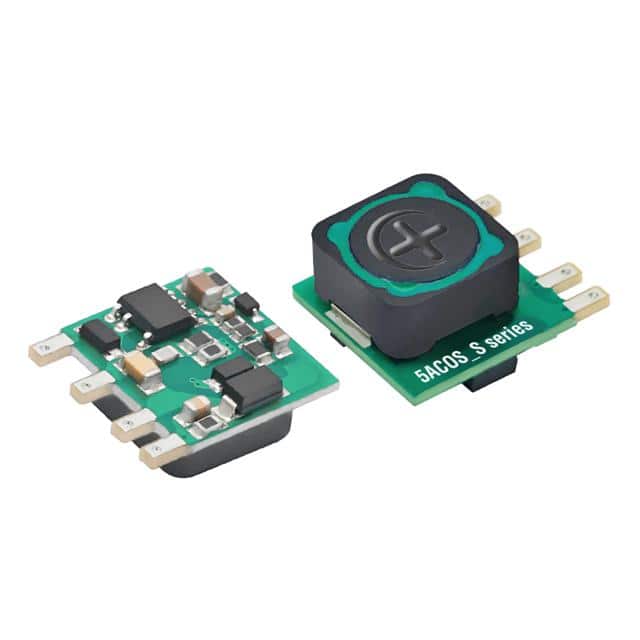

The GAPTEC Electronic 5ACOS_12S is a compact, open-frame AC-DC converter designed for industrial applications. It offers a wide universal input voltage range of 85-305VAC and 70-430VDC, making it versatile for various power sources.
This converter provides a single output with 3.96W of power and an output current of 330mA. Key electrical specifications include an efficiency of up to 77%, output accuracy of ±5%, line regulation of ±1.5%, and load regulation of ±3%. It operates within an ambient temperature range of -40°C to +85°C, with derating applied at temperature extremes.
The 5ACOS_12S series is built with industrial-grade design principles and includes protection features such as output short circuit and over-current protection. It meets EN62368 safety standards. The compact dimensions of 16.13 x 15.10 x 9.50 mm and free air convection cooling make it suitable for space-constrained PCB layouts.
Applications for this converter include industrial control instrumentation, electric power applications, and smart home devices where high reliability and compact size are required.
The input voltage range is 85 to 305 VAC or 70 to 430 VDC.
The output voltage is 12 V and the output current is 330 mA.
The operating temperature range is -40°C to +85°C.
The efficiency is up to 77%.
The dimensions are 16.13 x 15.10 x 9.50 mm.
