| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

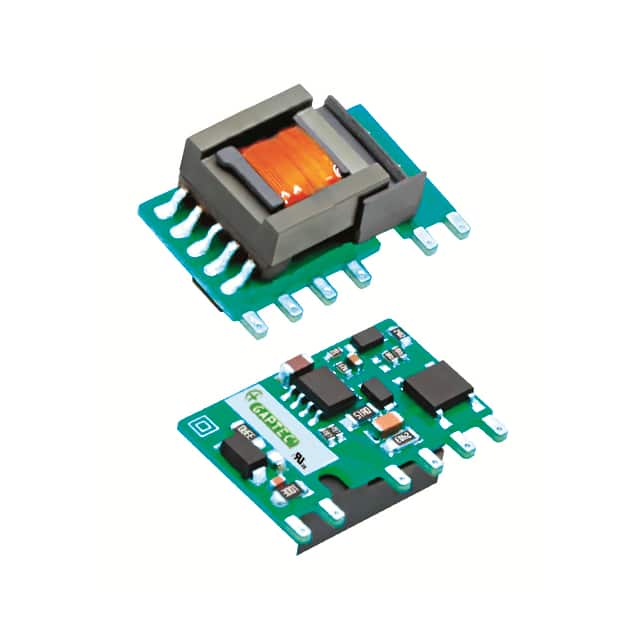

The GAPTEC Electronic 5ACFEW_03S3 is a 3.3W AC/DC converter from the 5ACFEW_3 series, designed for flexibility and efficiency. It offers a 3.3V single output and accepts a wide input voltage range of 85-305 VAC or 70-430 VDC.
This converter features an open frame construction and through-hole mounting, making it suitable for various applications. Key electrical specifications include an efficiency of 69%, output current capability of 1A, and protections for output short circuit and over-current. The operating temperature range is -40°C to +85°C with derating.
Designed to meet standards such as IEC/EN/UL60335-1 and IEC/EN/UL62368-1, it is suitable for applications like household appliances and ITE (Commercial). The compact dimensions (26.4mm x 11.0mm x 14.7mm) contribute to its high power density.
The input voltage range is 85-305 VAC, and it also accepts 70-430 VDC.
The output voltage is 3.3V with a maximum output current of 1A.
The operating temperature range is -40°C to +85°C with derating.
The package type is a 6-SIP module with through-hole mounting.
It has over-current and short-circuit protection with self-recovery.
The efficiency is 69%.
Ripple and noise are 150mV maximum.
