| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

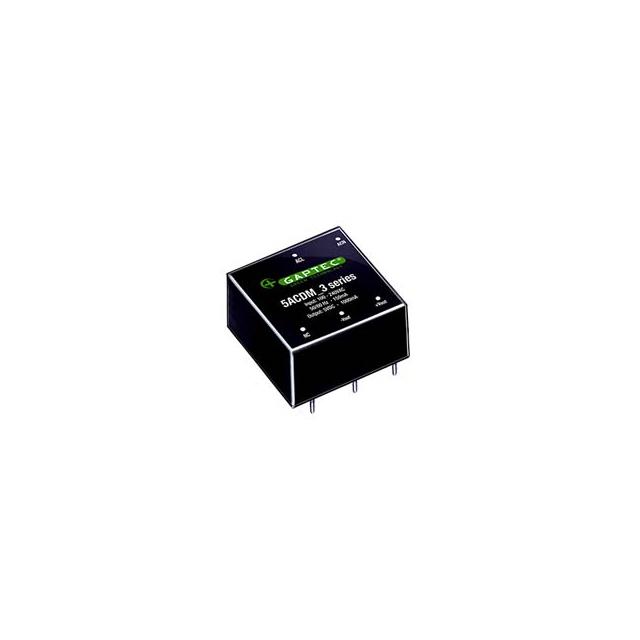

The GAPTEC Electronic 5ACDM_03S3 is an enclosed AC DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 VAC or 120-370 VDC, delivering a stable 3.3V output with a maximum current of 1.515A, for a total power of 5W.
This converter features a high efficiency of 74% and offers tight load and line regulation of ±1%. It is designed for through-hole mounting and comes in a 5-DIP Module package. The operating temperature range is -25°C to 70°C with derating.
Compliance is certified by cURus and UL approval agencies. The unit adheres to standards such as 60950-1 and 62368-1. Its dimensions are 25.4mm x 25.4mm x 16.1mm.
This component is suitable for various commercial applications requiring a reliable power conversion solution.
The input voltage range is 90 to 264 VAC or 120 to 370 VDC.
The output voltage is 3.3V.
The maximum output current is 1.515A.
The power rating is 5W.
The efficiency is 74%.
The operating temperature range is -25°C to 70°C with derating.
It is approved to cURus and UL standards, including UL 60950-1 and UL 62368-1.
