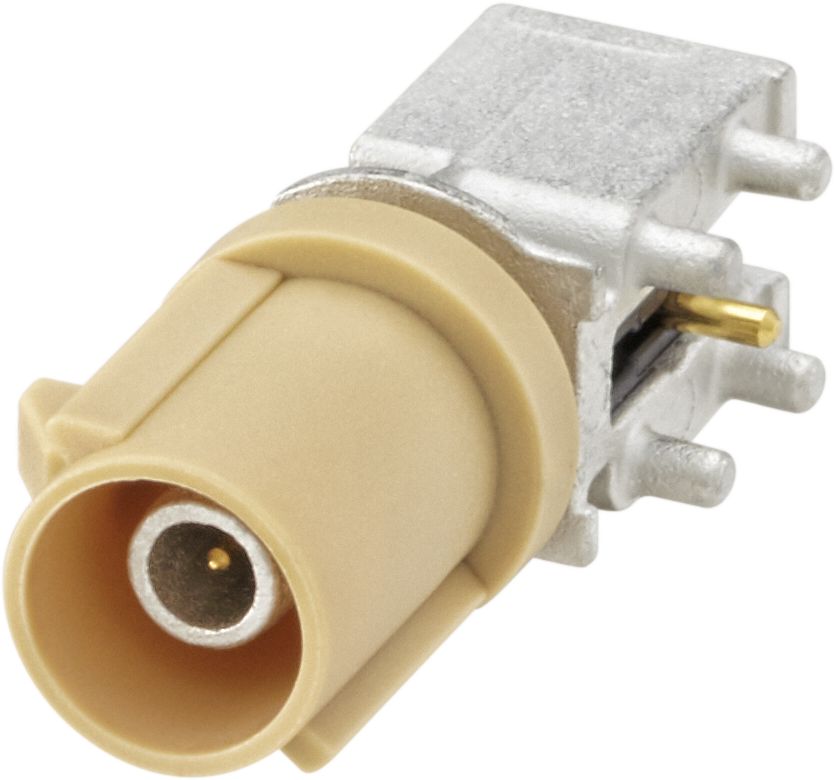

This Rosenberger 59S20K-40MT5-I is a FAKRA series right angle plug connector specifically designed for Printed Circuit Board (PCB) applications. It features a PC-Board SMD Pin-in-Paste backend type and a beige housing color, corresponding to coding 'I'.
The connector operates with a 50 Ohm impedance and supports frequencies from DC up to 6 GHz. Key electrical specifications include a return loss of ≥ 21 dB (DC to 3 GHz), an insertion loss of ≤ 0.1 dB, and an insulation resistance of ≥ 1 x10³ MΩ. It is rated for a test voltage of 750 V rms and a working voltage of 335 V rms, with a power current rating of ≤ 1 A DC.
Mechanically, the connector is designed for ≥ 25 mating cycles, with an engagement force of ≤ 25 N and a disengagement force of ≥ 2 N. The latch retention force is ≥ 110 N. Environmentally, it operates within a temperature range of -40°C to +105°C and is compliant with RoHS3 standards. The connector is supplied in tape and reel packaging, with 300 pieces per reel.
This component is suitable for automotive applications requiring reliable RF connections. Its right-angle configuration is ideal for space-constrained PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the Rosenberger 59S20K-40MT5-I connector is 50 Ohms.
The operating frequency range for the 59S20K-40MT5-I connector is DC to 6 GHz.
The maximum insertion loss for this connector is 0.1 dB.
The temperature range for the 59S20K-40MT5-I connector is -40°C to +105°C.
The connector is rated for a minimum of 25 mating cycles.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
