| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Captivation | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Current | |
| Contact Resistance (Maximum) | |
| Contact Termination | |
| Disengagement Force | |
| Engagement Force | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| RF Leakage | |
| Return Loss (Minimum @ 3 to 4 GHz) | |
| Return Loss (Minimum @ DC to 1 GHz) | |
| SVHC Present | |
| Shield Termination | |
| Temperature Range | |
| Test Voltage | |
| Weight | |
| Working Voltage | |
| return_loss (Minimum @ 1 to 3 GHz) |

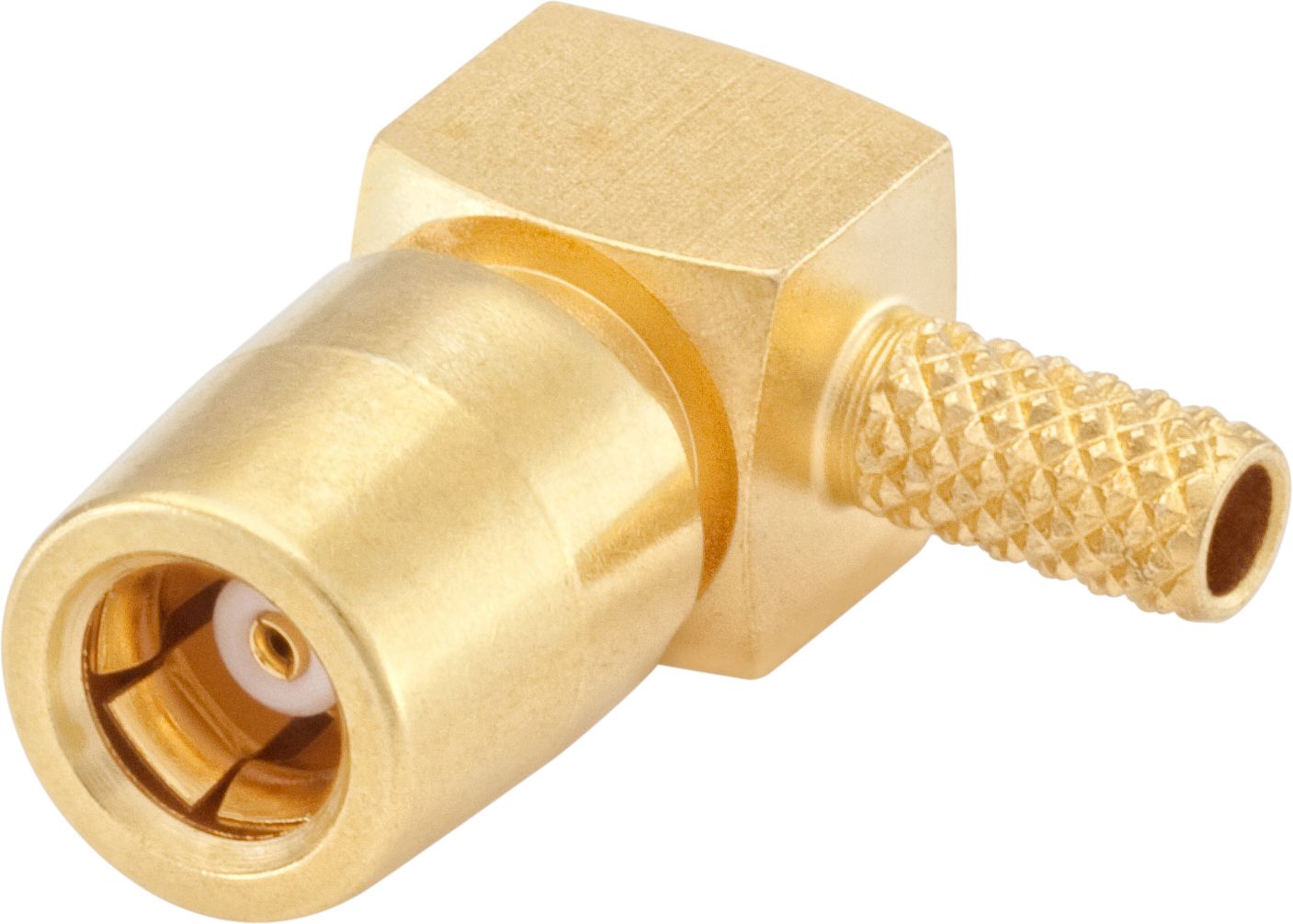

The Rosenberger 59K214-302L5 is a high-quality SMB coaxial connector designed for right-angle, in-line mounting. It features a female socket interface and provides a 50 Ohm impedance for RF applications up to 4 GHz.
This connector supports a frequency range of DC to 4 GHz with return loss of at least 25 dB up to 1 GHz, 22 dB from 1 to 3 GHz, and 20 dB from 3 to 4 GHz. Insertion loss is a maximum of 0.1 dB. It is rated for a working voltage of 250 V rms and a contact current of 1.5 A DC.
The connector features a snap-on fastening mechanism and is terminated by solder for the center contact and crimp for the shield. It is compatible with RG-174A, 188A, and 316 cable groups. The housing is gold-plated brass, with beryllium copper center contact. It operates over a temperature range of -55°C to +155°C and is rated for at least 500 mating cycles.
The impedance is 50 Ohms.
DC to 4 GHz.
The contact current is 1.5 A DC typical.
The working voltage is 250 V rms maximum, and test voltage is 750 V rms.
Free hanging (in-line) and right angle.
RG-174A, 188A, and 316.
Yes, it is RoHS3 compliant.
