| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
836 pcs
|
836 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Current Test (Typical @ Blue) | |
| Current Test (Typical @ Green) | |
| Forward Voltage (Typical @ Blue) | |
| Forward Voltage (Typical @ Green) | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Millicandela Rating (Typical @ Blue) | |
| Millicandela Rating (Typical @ Green) | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| wavelength (@ Blue) | |
| wavelength (@ Green) |

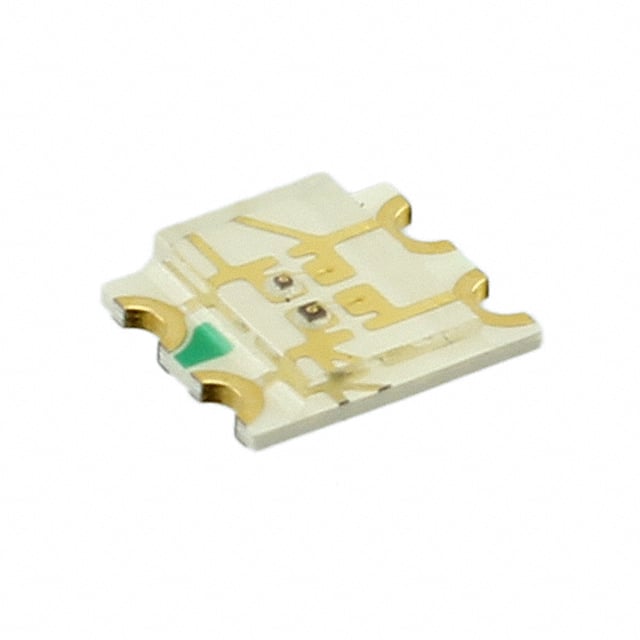

This Dialight 5988610307F is a surface-mount tri-color LED designed for indication applications. It combines Red, Green, and Blue emitters within a single 1210 (3225 Metric) package, measuring 3.20mm L x 2.70mm W with a maximum height of 0.70mm.
The LED features a colorless lens with a flat top, styled as a rectangle with dimensions of 2.00mm x 1.30mm, providing a clear light output with a wide 140° viewing angle. Electrical characteristics include a typical forward voltage of 2V for red and 3.2V for green and blue, with a test current of 20mA for each color. The dominant wavelengths are 635nm for red, 525nm for green, and 470nm for blue. Luminous intensity ratings are 60mcd for red, 120mcd for green, and 90mcd for blue at the specified test current.
This component is configured with a common anode and is suitable for automated assembly processes due to its surface mount design. It is supplied in Digi-Reel packaging. The part is RoHS3 compliant, has an MSL rating of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 5988610307F LED emits Red, Green, and Blue light.
The 5988610307F LED is supplied in a 1210 (3225 Metric) package.
The 5988610307F LED is a surface mount device.
The typical forward voltage is 2V for Red, 3.2V for Green, and 3.2V for Blue.
The viewing angle for the 5988610307F LED is 140 degrees.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
