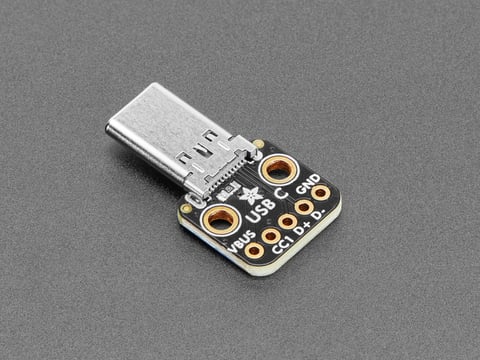

5978 The Adafruit USB Type C Plug Breakout (Part #5978) provides basic connections for USB Type C. It is designed for 5V power and up to 1.5A current.
Mfr Part #:

5978

Available from 1 distributors
Mfr Name: Adafruit Industries LLC
Adafruit Industries LLC
The Adafruit USB Type C Plug Breakout (Part #5978) provides basic connections for USB Type C. It is designed for 5V power and up to 1.5A current.
✓ Total Stock: 224 pcs
$ Price Range: $2.95

5978 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
224 pcs
On Request
224 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5978 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Mounting Type
Voltage Rating
View Similar Products (0)

5978 Description

Short technical summary and product information.

This Adafruit USB Type C Plug Breakout board (Part #5978) offers a convenient way to interface with the latest USB Type C connectors. USB C is the industry standard, featuring a reversible connector and enhanced power capabilities.



This breakout board is configured to provide 5V power and can support up to 1.5A current, depending on the upstream power source. It utilizes a semi-through hole mounting configuration for mechanical stability. The breakout exposes essential pins for VBUS, GND, D+, and D-, allowing for straightforward integration into development projects.



Ideal for makers and developers looking to incorporate USB C connectivity into their designs, this breakout simplifies the process of working with the new standard. It's suitable for projects requiring power delivery and data transfer via USB C.

5978 Quick Information

Product Type: USB Type C Plug Breakout
Canonical Name: Adafruit USB Type C Plug Breakout
Subcategory: USB Type C Plug Breakout

5978 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5978 Estimated Pricing

Qty Low High
1+ $2.95 $2.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

5978 Features

  • USB Type C plug breakout board
  • Provides 5V power output
  • Supports up to 1.5A current
  • Through hole mounting configuration

5978 Applications

  • Ideal for USB-C prototyping and DIY projects.
  • Provides 5V power from USB-C upstream.
  • Breaks out D+ and D- data lines.
  • Enables reversible USB-C connector integration.
  • Suitable for custom USB-C cable adapters.

5978 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the Adafruit 5978 USB Type C Plug Breakout?

The voltage rating is 5V.

What is the maximum current this USB Type C plug breakout can support?

It supports up to 1.5A.

How is the Adafruit 5978 USB Type C Plug Breakout mounted?

It features a semi-through hole mounting configuration.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.

Is the Adafruit 5978 USB Type C Plug Breakout RoHS compliant?

The status is RoHS3 Compliant.

What is the REACH status for this component?

The status is REACH Unaffected.
