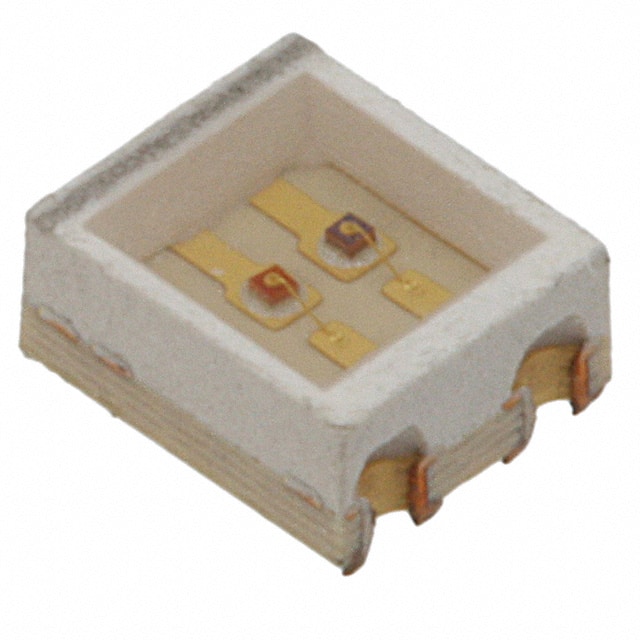

5977701507F The Dialight 5977701507F is a Green/Red LED Indication - Discrete component. It features a 4-SMD, No Lead package and surface mount capability.
Mfr Part #:

5977701507F

Available from 4 distributors
Mfr Name: Dialight
Dialight
The Dialight 5977701507F is a Green/Red LED Indication - Discrete component. It features a 4-SMD, No Lead package and surface mount capability.
✓ Total Stock: 10,318 pcs
$ Price Range: $0.99

5977701507F Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
7,500 pcs
On Request
7500 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 1527+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
268 pcs
On Request
268 pcs On Request 1 On Request On Request 11+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5977701507F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

5977701507F Description

Short technical summary and product information.

This Dialight 5977701507F is a discrete LED component designed for indication purposes, offering both Green and Red light outputs. It operates with a typical forward voltage of 2.2V for Green and 2V for Red, and draws a current of 20mA for both colors. The dominant wavelengths are 575nm for Green and 653nm for Red, with peak wavelengths at 570nm and 650nm respectively. The luminous intensity is rated at 16mcd for Green and 6.3mcd for Red. The LED features a colorless, clear lens with a rectangle shape and flat top, providing a wide 100° viewing angle. Its dimensions are 3.00mm in length and 2.50mm in width, with a maximum height of 1.30mm. The component is housed in a 4-SMD, No Lead package, suitable for surface mounting. It is configured for independent operation of the Green and Red LEDs. The product is RoHS3 Compliant and has an MSL rating of 3. This component is ideal for various indication applications where dual-color functionality is required.

5977701507F Quick Information

Product Type: LED Indication - Discrete
Series: 597
Canonical Name: Dialight 5977701507F Green/Red LED Indication - Discrete
Subcategory: Discrete

5977701507F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

5977701507F Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

5977701507F Features

  • Dual Green and Red LED indication.
  • Surface mount 4-SMD, No Lead package.
  • Wide 100-degree viewing angle.
  • Clear, colorless rectangle lens.
  • RoHS3 Compliant status.

5977701507F Applications

  • Ideal for status indicator lights.
  • Suitable for dual-color signaling.
  • Used in control panel displays.
  • Applicable for equipment status.
  • General purpose LED indication.

5977701507F FAQs

6 frequently asked questions generated from this part’s specifications.
What are the forward voltage requirements for the Dialight 5977701507F LED?

The typical forward voltage is 2.2V for the Green LED and 2V for the Red LED.

What are the dominant wavelengths for the Green and Red LEDs?

The dominant wavelength for the Green LED is 575nm, and for the Red LED it is 653nm.

What is the viewing angle of the 5977701507F LED?

The viewing angle is 100 degrees.

What type of package is the Dialight 5977701507F LED in?

It is in a 4-SMD, No Lead package.

How is the Dialight 5977701507F LED mounted?

It is designed for surface mounting.

What is the RoHS status of this component?

The RoHS status is RoHS3 Compliant.
